Installation

FRONT SUSPENSION: FRONT UPPER SUSPENSION ARM: INSTALLATION

HINT
* Use the same procedure for the RH and LH sides.
* The procedure listed below is for the LH side.
* A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

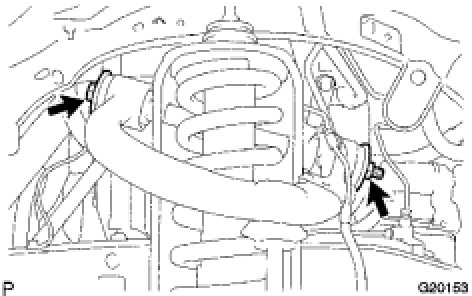

1. TEMPORARILY INSTALL FRONT SUSPENSION UPPER ARM ASSEMBLY LH

(a) Temporarily install the suspension upper arm and 2 washers with the bolt and nut.





HINT
After stabilizing the suspension, tighten the nut.

(b) Connect the bracket with the bolt.





Torque : 8.0 Nm (82 kgf-cm, 71 in-lbf)

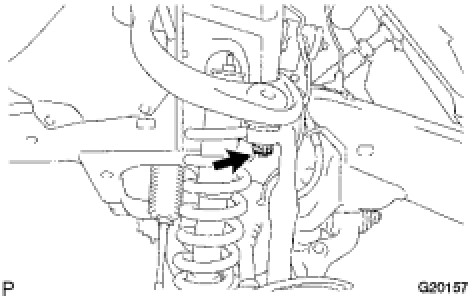

(c) Install a new nut and clip.





Torque : 110 Nm (1122 kgf-cm, 81 ft-lbf)

2. INSTALL SKID CONTROL SENSOR WIRE Installation

3. INSTALL FRONT WHEEL

Torque : 112 Nm (1142 kgf-cm, 83 ft-lbf)

4. STABILIZE SUSPENSION Installation

5. TIGHTEN FRONT SUSPENSION UPPER ARM ASSEMBLY LH

(a) Tighten the nut.

Torque : 115 Nm (1173 kgf-cm, 85 ft-lbf)

6. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

(a) Inspect and adjust the front wheel alignment Front Wheel Alignment.
