Removal

FRONT SUSPENSION: FRONT LOWER SUSPENSION ARM: REMOVAL

HINT
* Use the same procedure for the RH and LH sides.
* The procedure listed below is for the LH side.

1. REMOVE FRONT WHEEL

2. REMOVE LOWER FRONT BUMPER COVER Removal

3. REMOVE NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY Removal

4. REMOVE FRONT SUSPENSION MEMBER BRACE SUB-ASSEMBLY Removal

5. REMOVE FRONT STABILIZER END BRACKET Removal

6. REMOVE FRONT STABILIZER BAR Removal

7. DISCONNECT FRONT SHOCK ABSORBER WITH COIL SPRING

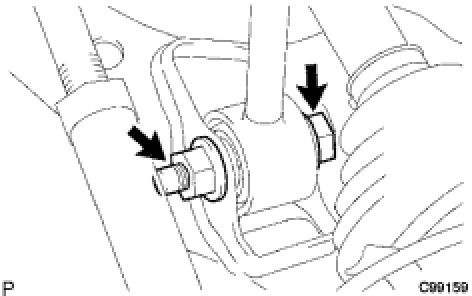

(a) Remove the bolt, nut and washer.





(b) Disconnect the front shock absorber with coil spring from the suspension lower arm.

8. REMOVE FRONT NO. 1 SUSPENSION LOWER ARM SUB-ASSEMBLY LH

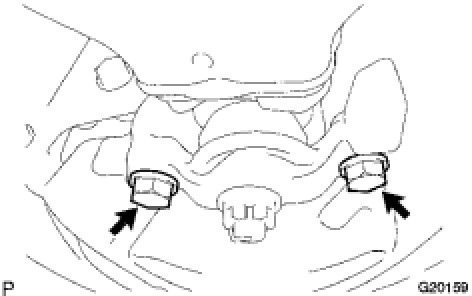

(a) Remove the 2 bolts and disconnect the front lower ball joint attachment LH from the front axle.





(b) Place matchmarks on the No. 2 camber adjust cam and toe adjust cam sub-assembly.

Text in Illustration









(c) Remove the nut, No. 2 camber adjust cam, camber adjust cam assembly, bolt, toe adjust cam sub-assembly, No. 2 toe adjust plate and front No. 1 suspension lower arm sub-assembly LH.

(d) Remove the cotter pin and nut.

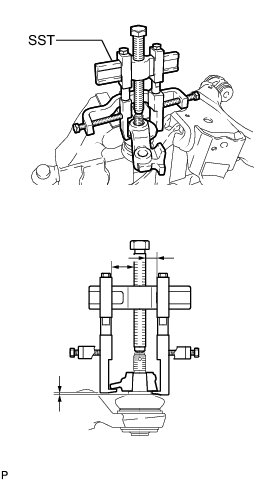

(e) Using SST, remove the front lower ball joint attachment LH.





SST : 09950-40011

09951-04010

09954-04010

09955-04031

09955-04061

09958-04011

09952-04010
