Reassembly

FRONT SUSPENSION: FRONT UPPER SUSPENSION ARM: REASSEMBLY

1. INSTALL FRONT UPPER BALL JOINT DUST COVER LH

(a) Pack the upper arm ball joint with MP grease.





Grease capacity:

8.0 g (0.282 oz.)

Text in Illustration





(b) Apply MP grease to the locations shown in the illustration.

NOTICE:
Do not apply MP grease to the tapered or threaded parts of the ball joint.

(c) Install the dust cover to the upper arm.

(d) Using a snap ring expander, install the dust cover set ring.





NOTICE:
Make sure the set ring is securely installed in the groove.

2. INSTALL FRONT SUSPENSION UPPER ARM BUSH LH

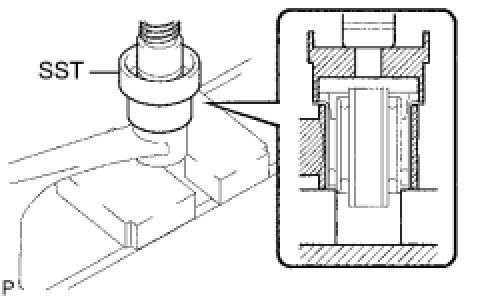

(a) Using SST and a press, press in a new bush.





SST : 09710-26011

09710-05061

HINT
Press in the rear side bush using the same procedure as for the front side.
