Disassembly

FRONT SUSPENSION: FRONT UPPER SUSPENSION ARM: DISASSEMBLY

1. REMOVE FRONT SUSPENSION UPPER ARM BUSH LH

HINT
Use the same procedure for the front and rear sides.

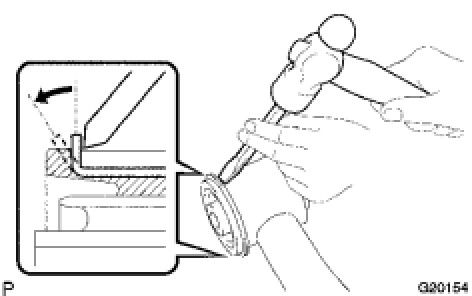

(a) Using a hammer and chisel, strike and bend the entire flange of the upper arm bush as shown in the illustration.

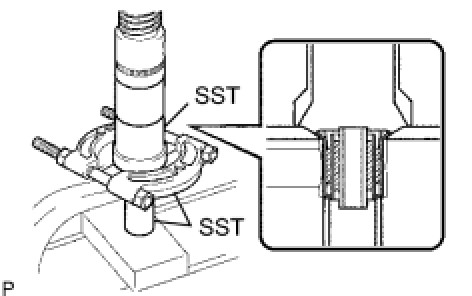

(b) Using SST and a press, press out the bush.





SST : 09613-26010

SST : 09710-22021

09710-01031

SST : 09950-00020

2. REMOVE FRONT UPPER BALL JOINT DUST COVER LH

(a) Using a snap ring expander, remove the dust cover set ring and dust cover from the upper arm.





NOTICE:
* Do not damage the ball joint dust cover.
* If the ball joint dust cover is damaged, replace it.
