Reassembly

FRONT SUSPENSION: FRONT LOWER SUSPENSION ARM: REASSEMBLY

1. INSTALL LOWER BALL JOINT DUST COVER LH

(a) Pack the lower arm ball joint with MP grease.

Grease capacity:

8.0 g (0.282 oz.)

(b) Apply MP grease to the locations shown in the illustration.

Text in Illustration









NOTICE:
Do not apply MP grease to the tapered or threaded parts of the ball joint.

(c) Install the dust cover to the lower arm.

(d) Using a snap ring expander, install the dust cover set ring.





NOTICE:
Make sure the set ring is securely installed in the groove.

2. INSTALL FRONT NO. 2 LOWER ARM BUSH LH

(a) Using SST and a press, press in a new bush.

SST : 09387-00020

SST : 09710-30041

09710-03221

Text in Illustration









NOTICE:

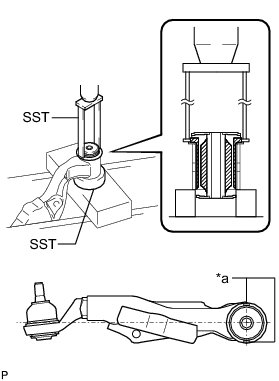

Press in the bush while making sure the bush positioning protrusions are perpendicular to the lower arm as shown in the illustration.

3. INSTALL FRONT NO. 1 LOWER ARM BUSH LH

(a) Using SST and a press, press in a new bush.





SST : 09612-30012

SST : 09710-04081
