Disassembly

FRONT SUSPENSION: FRONT LOWER SUSPENSION ARM: DISASSEMBLY

1. REMOVE FRONT NO. 1 LOWER ARM BUSH LH

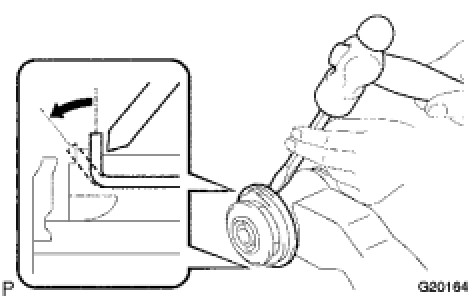

(a) Using a chisel and hammer, pry the flange of the bush outward.





(b) Using SST and a press, press out the bush.





SST : 09632-36010

SST : 09950-00020

SST : 09950-60010

09951-00400

2. REMOVE FRONT NO. 2 LOWER ARM BUSH LH

(a) Using a chisel and hammer, pry the flange of the bush outward.





(b) Using SST and a press, press out the bush.





SST : 09632-36010

SST : 09950-00020

SST : 09950-60010

09951-00400

3. REMOVE LOWER BALL JOINT DUST COVER LH

(a) Using a snap ring expander, remove the dust cover set ring and dust cover from the lower arm.





NOTICE:
* Do not damage the ball joint dust cover.
* If the ball joint dust cover is damaged, replace it.
