Actuator Power Source Circuit





STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: Actuator Power Source Circuit
- Actuator Power Source Circuit

DESCRIPTION

This is the power source for the power tilt and power telescopic steering column system.

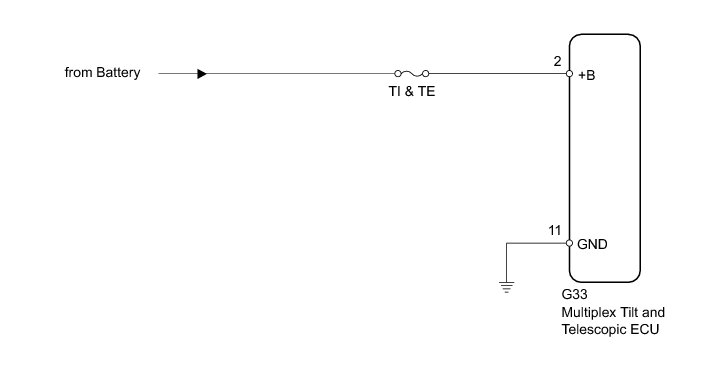

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
Inspect the fuses for circuits related to this system before performing the following inspection procedure.

PROCEDURE

1. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BATTERY) B2610

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

2. CHECK HARNESS AND CONNECTOR (MULTIPLEX TILT AND TELESCOPIC ECU - BODY GROUND) B2610

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- CHECK IG POWER SOURCE CIRCUIT IG Power Source Circuit
