Power Tilt and Power Telescopic Steering Column System

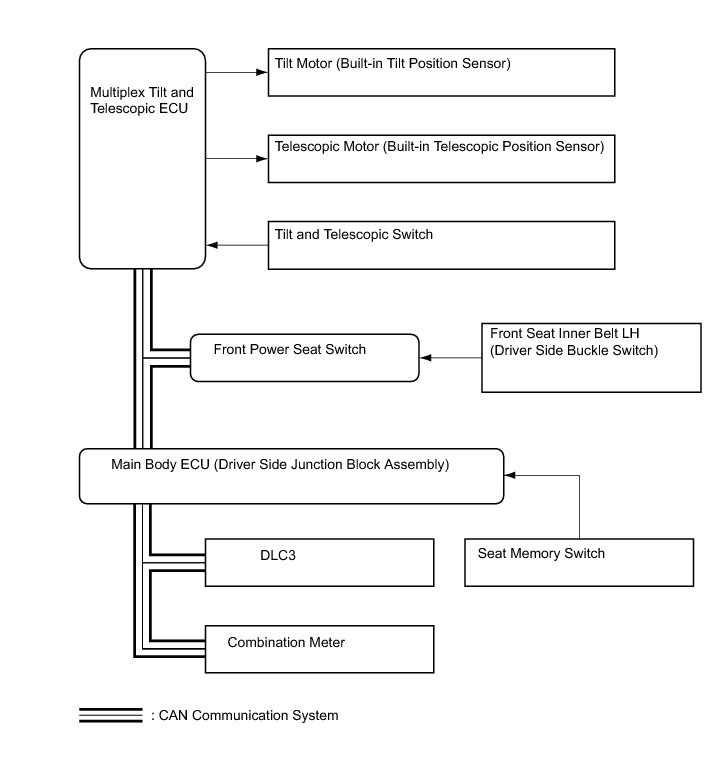

STEERING COLUMN: POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM: SYSTEM DIAGRAM

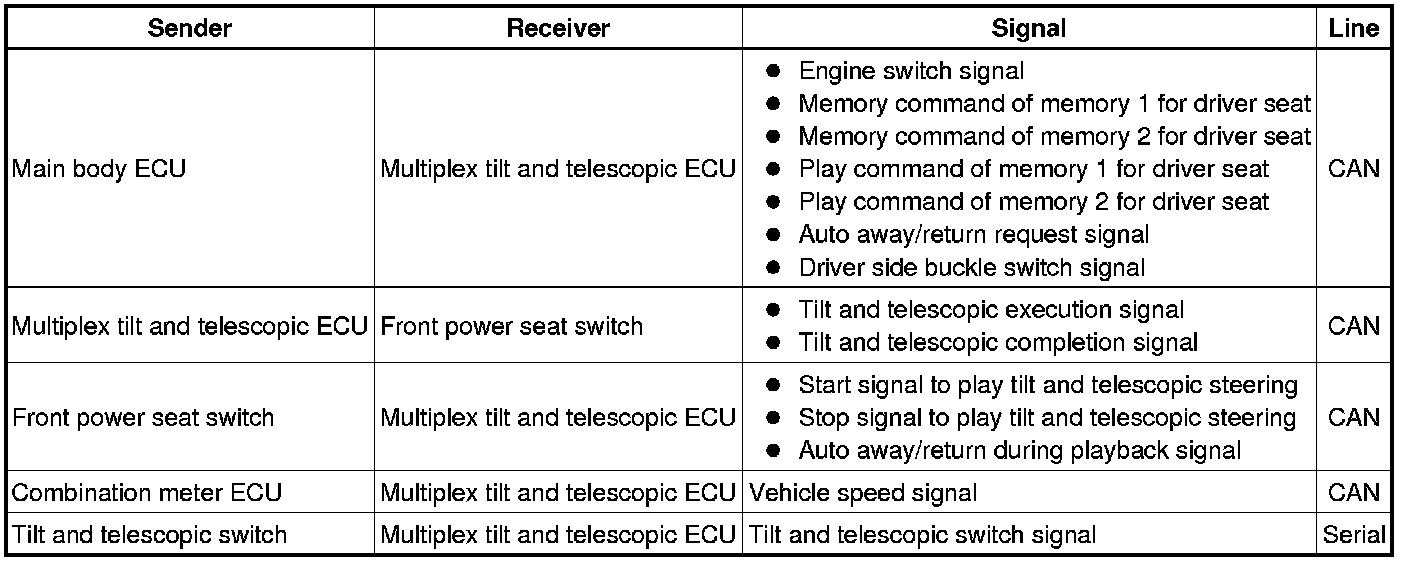

Communication Table










SYSTEM DESCRIPTION

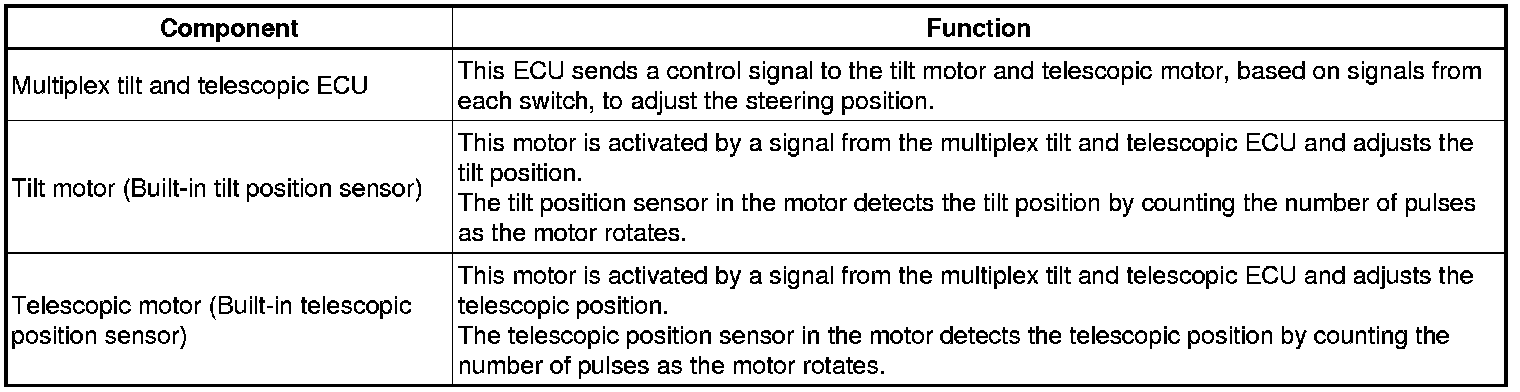

1. FUNCTION OF MAIN COMPONENTS





2. MANUAL OPERATION

(a) The tilt and telescopic positions can be adjusted as desired by operating the tilt and telescopic switch.

3. AUTO AWAY/RETURN FUNCTION

(a) When the engine switch is turned off and the driver side seat belt is unfastened, the steering column moves forward, away from the driver, and also tilts up for easy ingress and egress.

(b) When the engine switch is turned on (IG) or the driver side seat belt is fastened, the steering column returns to the previously set position.

(c) The auto away/return function can be prohibited by using the Techstream.

4. DRIVING POSITION MEMORY FUNCTION (with Seat Position Memory System)

(a) The system can memorize and recall two driving positions by operating the seat memory switch. Even if these positions are changed when the driver gets in or out of the vehicle, the system can restore the memorized position by the one-touch operation if the steering wheel column position and driver side seat position are stored.
