Tilt Wheel Switch: Testing and Inspection

STEERING COLUMN: TILT AND TELESCOPIC MANUAL SWITCH: INSPECTION

1. INSPECT TILT AND TELESCOPIC SWITCH

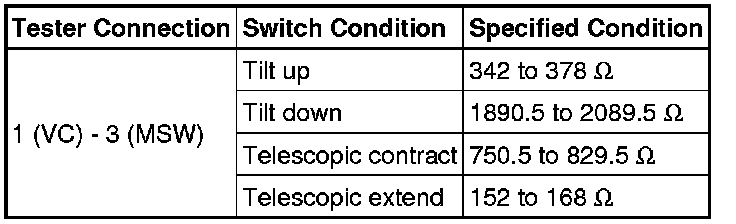

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





If the result is not as specified, replace the tilt and telescopic manual switch.
