Home >> Lexus >> 2011 >> GX 460 V8-4.6L (1UR-FE) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Fuse >> Application and ID >> Engine Room R/B Assembly and Engine Room J/B Assembly

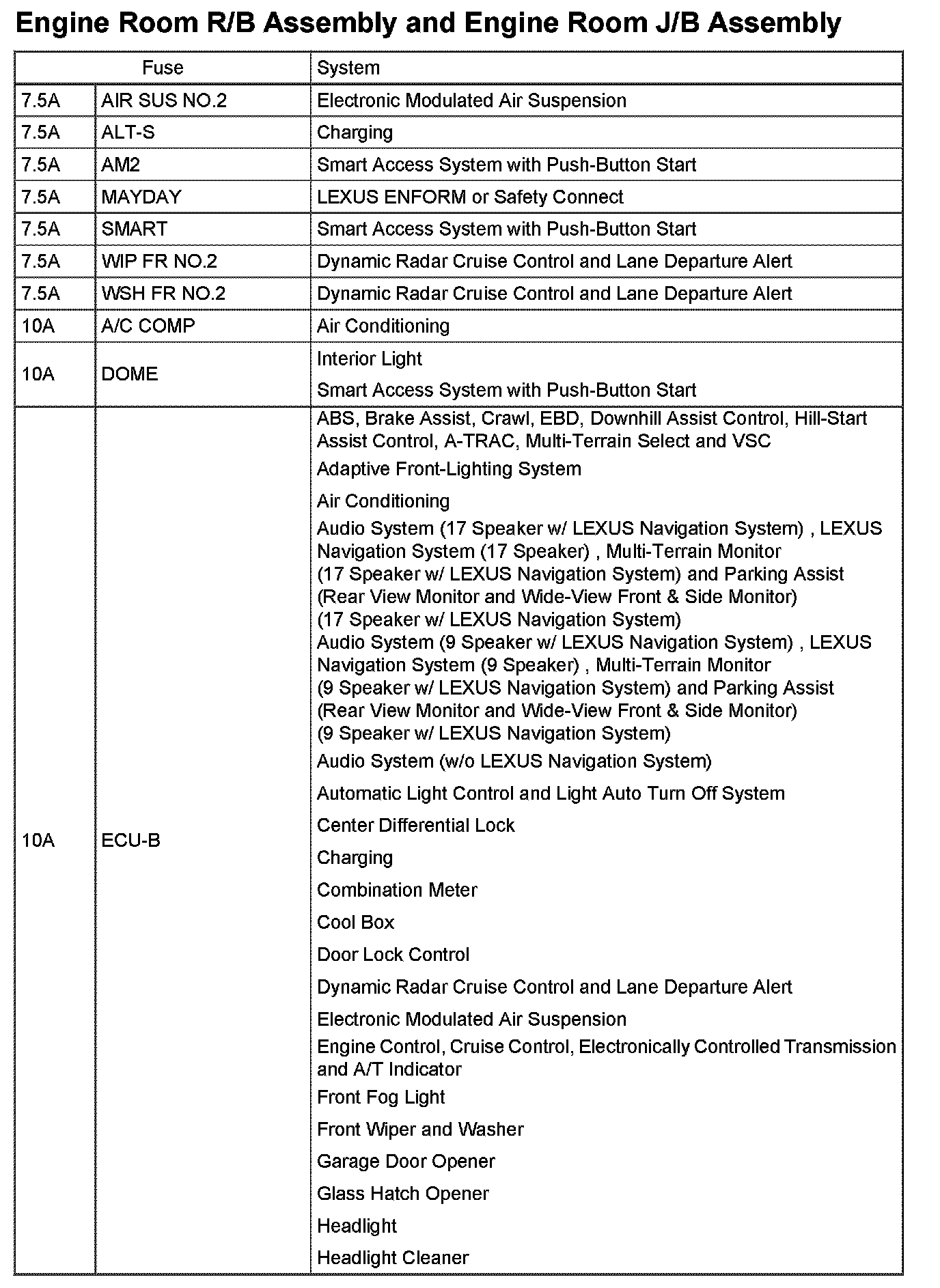

Engine Room R/B Assembly and Engine Room J/B Assembly

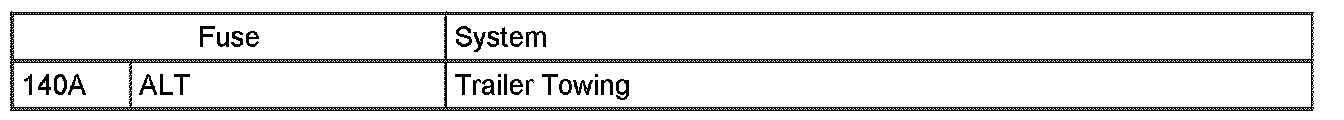

Engine Room R/B Assembly and Engine Room J/B Assembly:

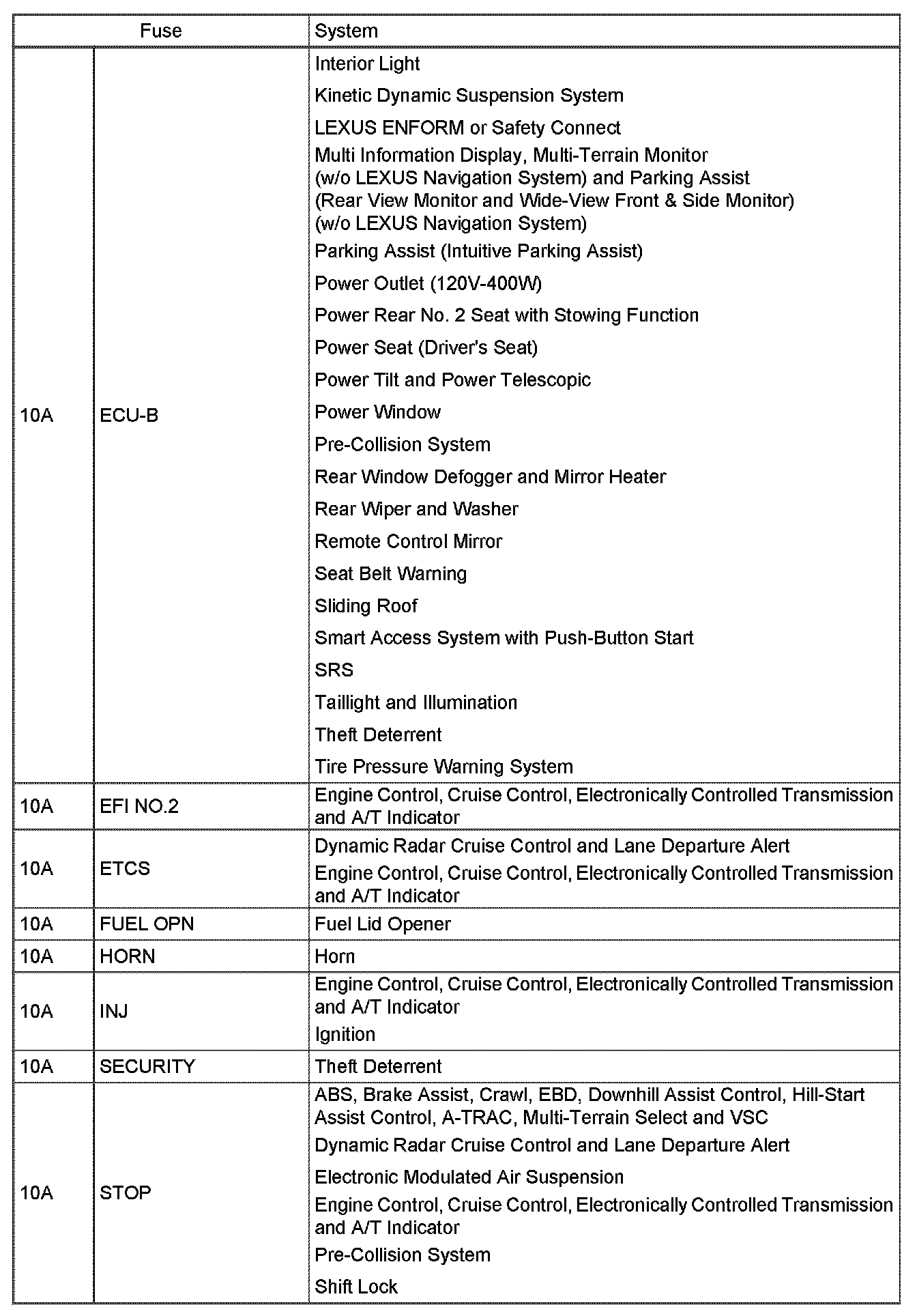

Engine Room R/B Assembly and Engine Room J/B Assembly:

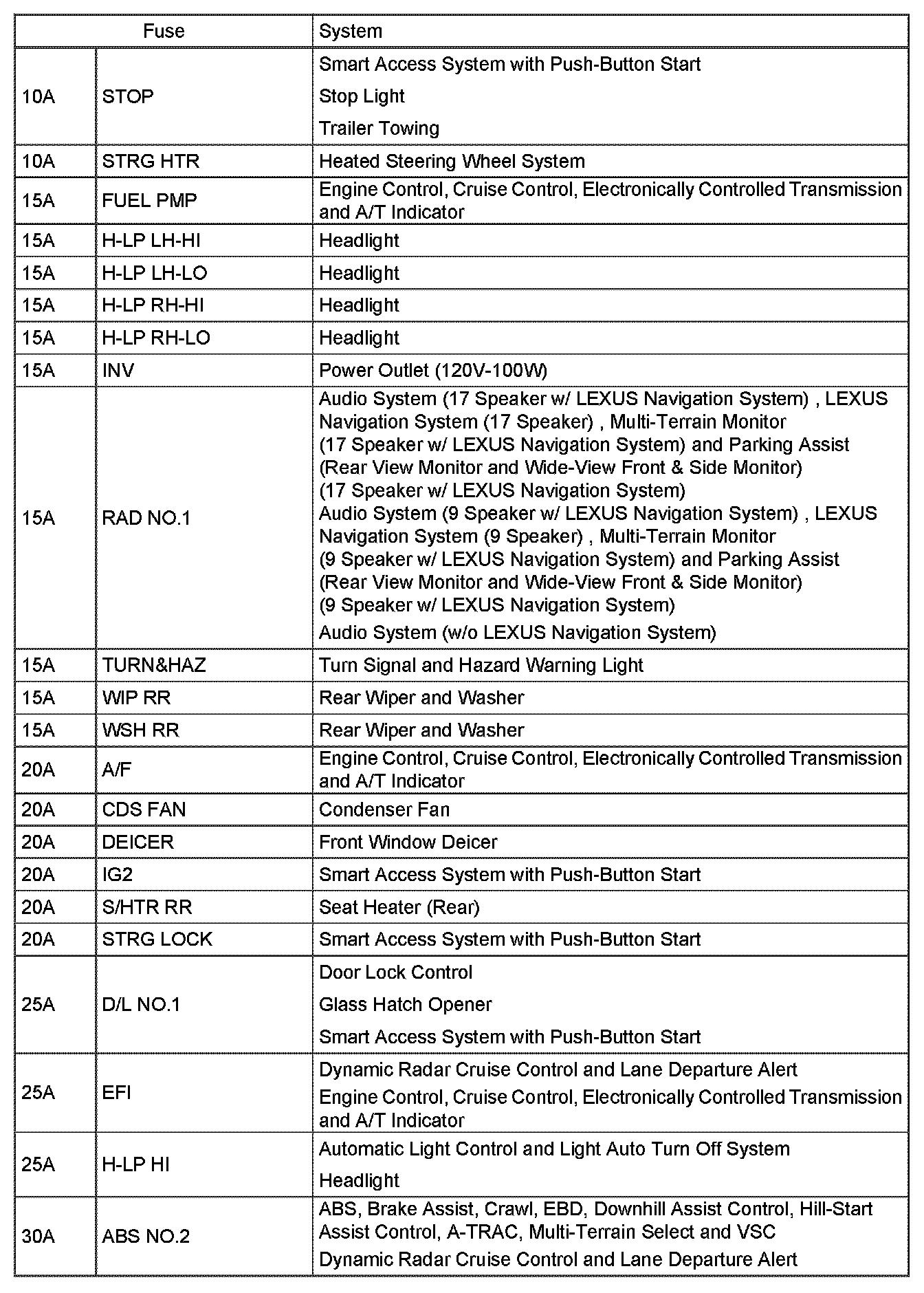

Engine Room R/B Assembly and Engine Room J/B Assembly:

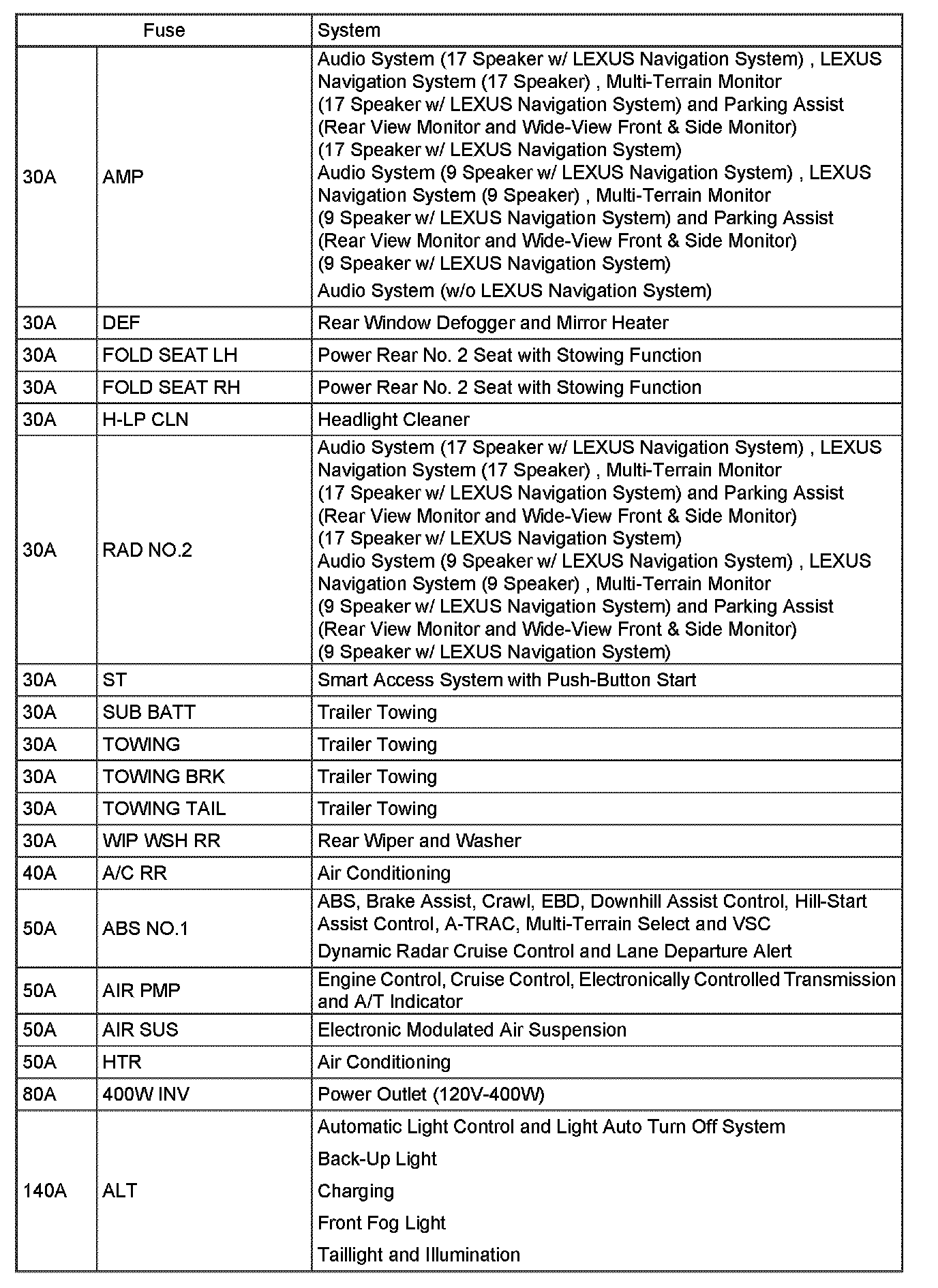

Engine Room R/B Assembly and Engine Room J/B Assembly:




Engine Room R/B Assembly and Engine Room J/B Assembly:
