Charging System: Description and Operation

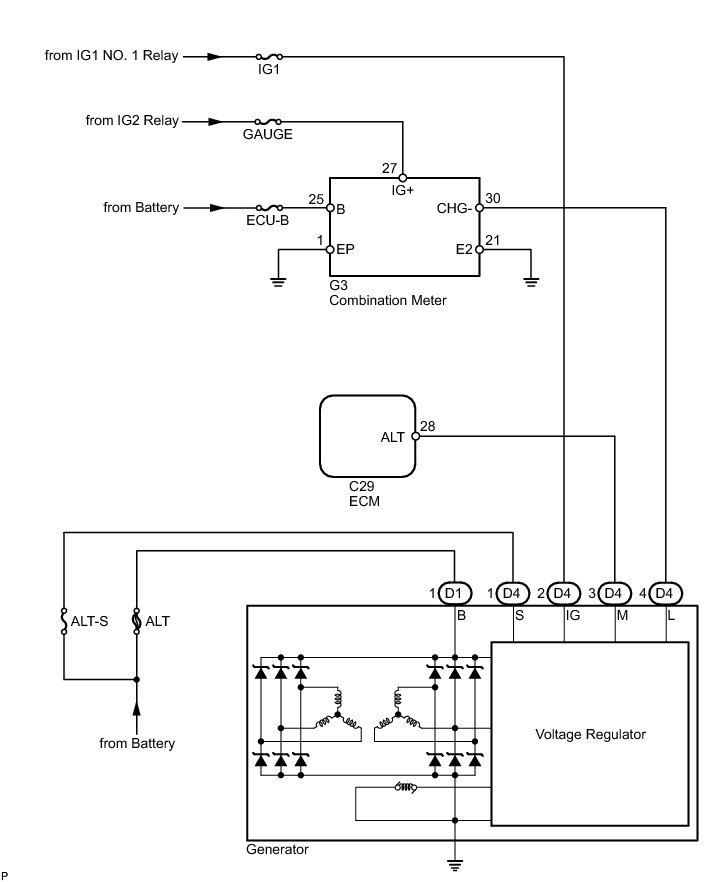

1UR-FE BATTERY / CHARGING: CHARGING SYSTEM: SYSTEM DIAGRAM
