Torque Specifications





SPECIFICATIONS: WIPER / WASHER: TORQUE SPECIFICATIONS

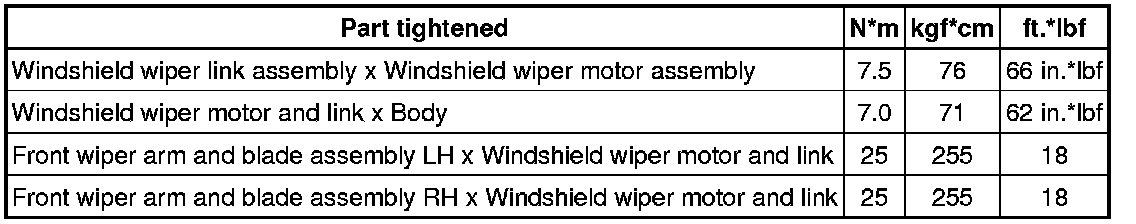

Front Wiper Motor

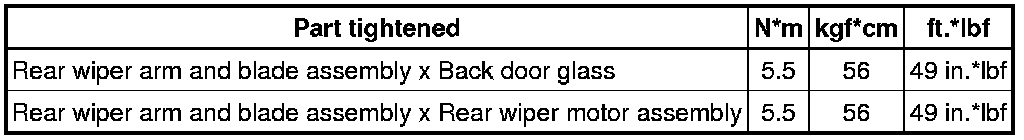

Rear Wiper Motor





Washer Motor
