Torque Specifications





SPECIFICATIONS: PARKING BRAKE: TORQUE SPECIFICATIONS

Parking Brake System

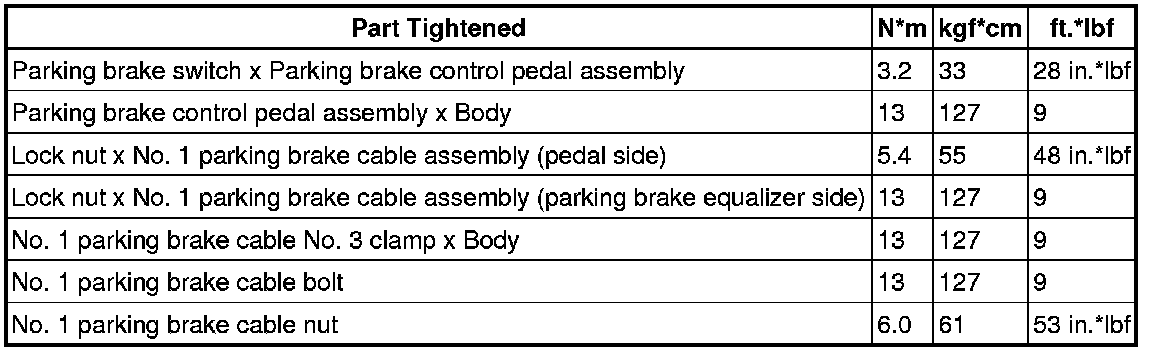

Parking Brake Pedal

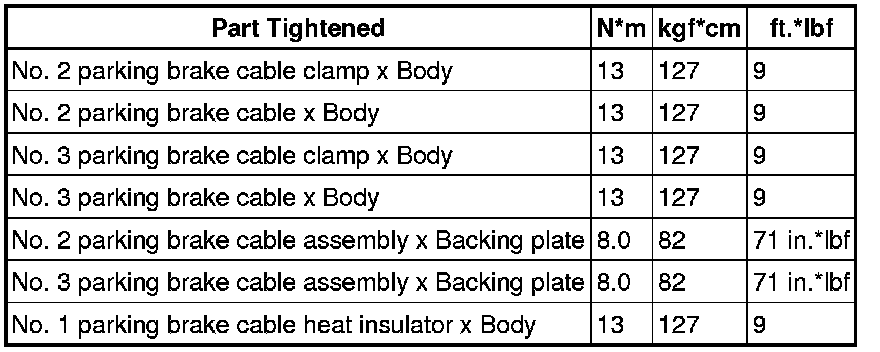

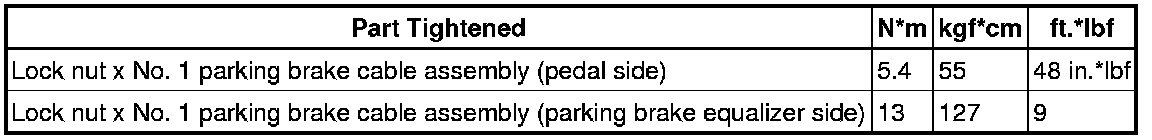

Parking Brake Cable





Parking Brake Assembly

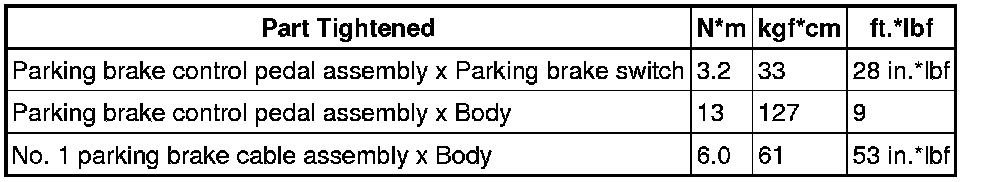

Parking Brake switch
