System Specifications





SPECIFICATIONS: INTERIOR PANELS / TRIM: TORQUE SPECIFICATIONS

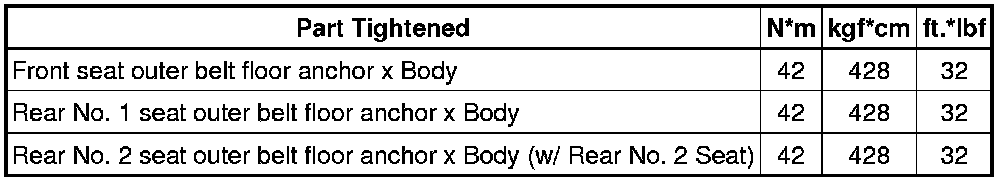

INTERIOR TRIM

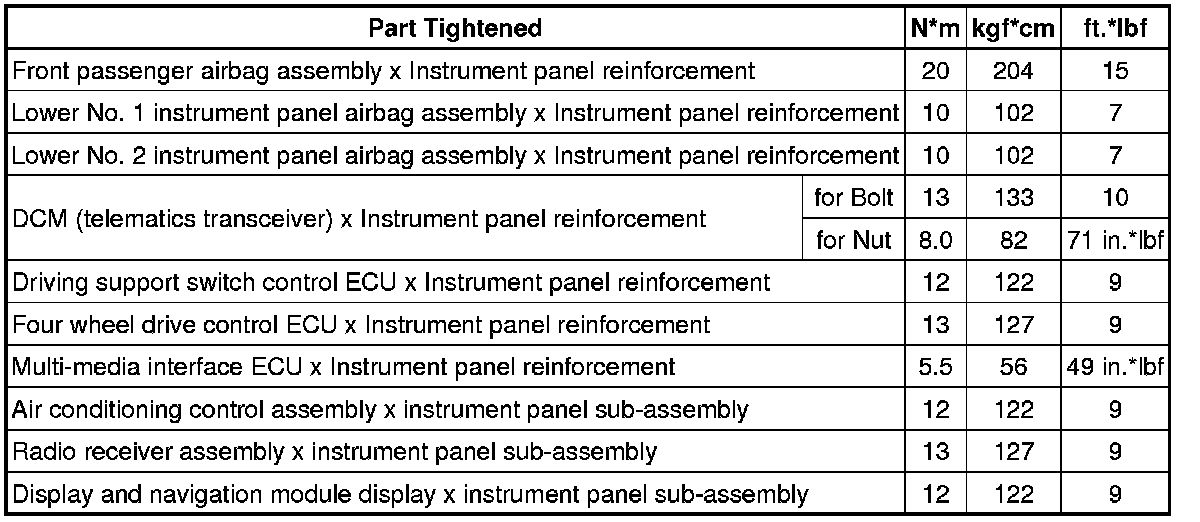

INSTRUMENT PANEL SAFETY PAD

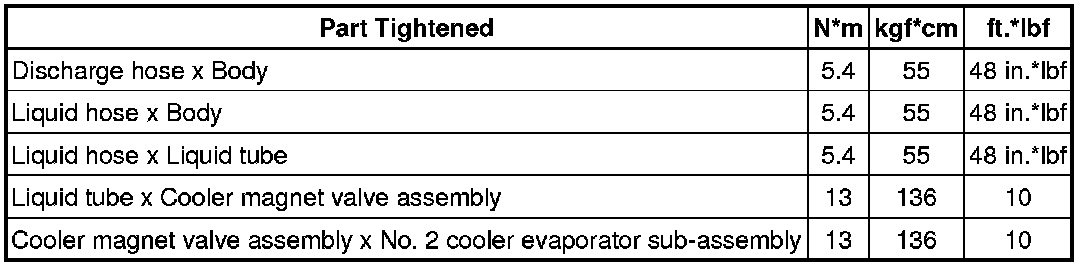

FRONT CONSOLE BOX (w/ Refrigerated Cool Box)





ROOF HEADLINING
