LEMON Manuals: Even more car manuals for everyone
Home >> Lexus >> 2011 >> GX 460 V8-4.6L (1UR-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Accessories and Optional Equipment >> System Specifications >> Torque Specifications

Torque Specifications





SPECIFICATIONS: AUDIO / VIDEO: TORQUE SPECIFICATIONS

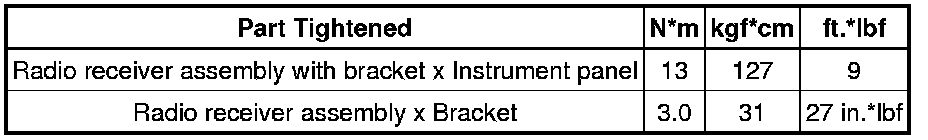

Radio Receiver

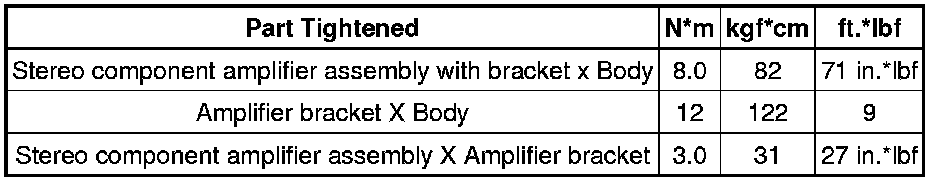

Stereo Component Amplifier

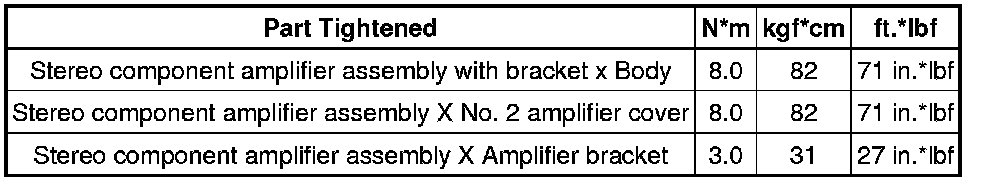

Stereo Component Amplifier (for 14 Speakers)

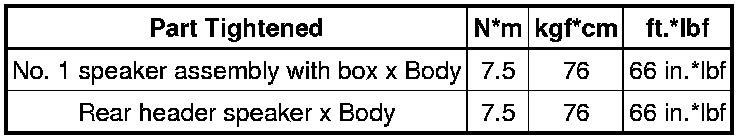

Luggage Speaker





Television Display

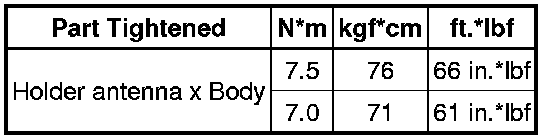

Amplifier Antenna





Rear Seat Entertainment ECU





Multi-Media Interface ECU
