Component Tests and General Diagnostics

A760F AUTOMATIC TRANSMISSION / TRANSAXLE: PARK / NEUTRAL POSITION SWITCH: INSPECTION

1. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY





(a) Measure the resistance according to the value(s) in the table below.

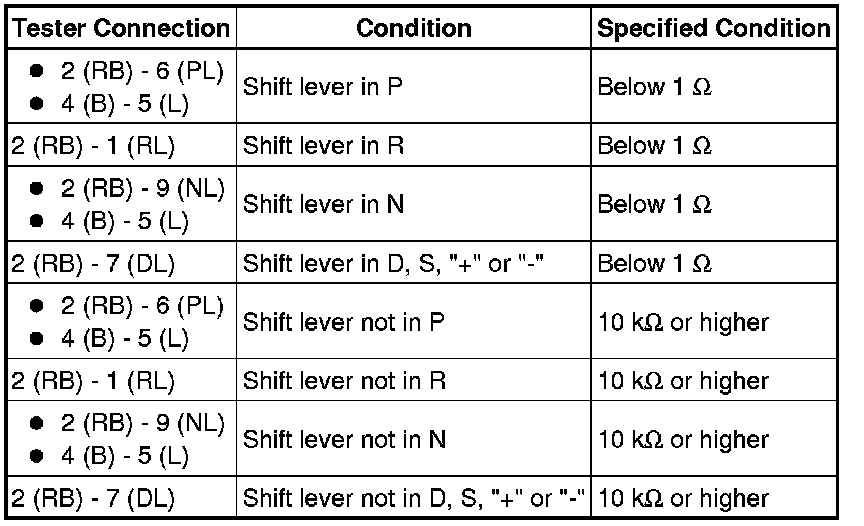

Standard Resistance:





Text in Illustration





If the result is not as specified, replace the switch.
