Hazard Warning Switch: Testing and Inspection

LIGHTING (EXT): HAZARD WARNING SWITCH: INSPECTION

1. INSPECT HAZARD WARNING SIGNAL SWITCH ASSEMBLY

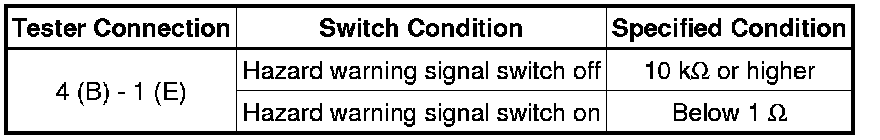

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:

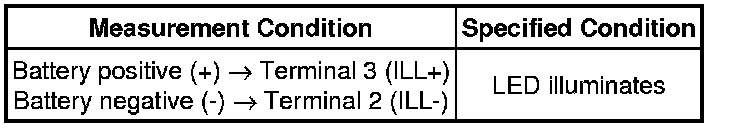

(b) Apply battery voltage to the connector and check the LED illumination condition.

OK:





If the result is not as specified, there may be a malfunction in the hazard warning signal switch.

Text in Illustration
