Removal

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: REAR SPEED SENSOR: REMOVAL

1. REMOVE REAR WHEEL

2. REMOVE REAR SPEED SENSOR LH

(a) Disconnect the speed sensor connector.





(b) Remove the nut and speed sensor.

NOTICE:
Pull out the sensor while trying as much as possible not to rotate it.

3. REMOVE REAR SPEED SENSOR RH

HINT
Use the same procedure described for the LH side.

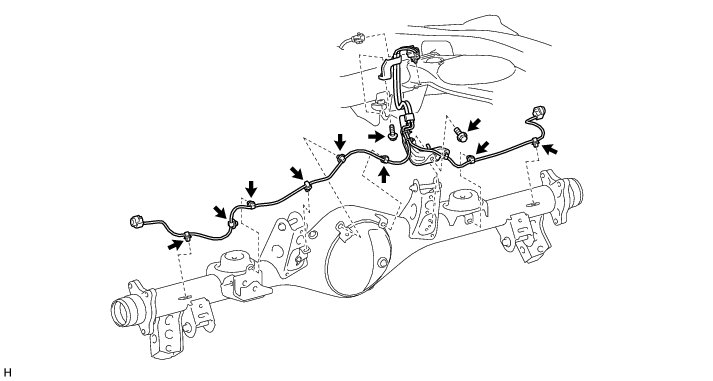

4. REMOVE SKID CONTROL SENSOR WIRE





(a) Disconnect the connector.

(b) Detach the connector.

(c) Detach the 8 clamps.

(d) Remove the 2 bolts and 2 sensor clamps.
