VSC Off Switch

BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: VSC OFF SWITCH: INSPECTION

1. INSPECT VSC OFF SWITCH

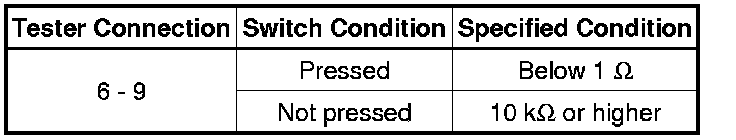

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





Text in Illustration





If the result is not as specified, replace the VSC OFF switch.
