Front Seat Inner Belt Assembly

SEAT BELT: FRONT SEAT INNER BELT ASSEMBLY: INSPECTION

1. INSPECT FRONT SEAT INNER BELT ASSEMBLY

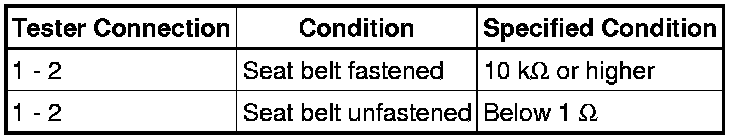

(a) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





If the result is not as specified, replace the front seat inner belt assembly.

Text in Illustration
