Removal
SEAT BELT: REAR NO. 2 SEAT OUTER BELT ASSEMBLY: REMOVAL
HINT
* Use the same procedure for the RH and LH sides.
* The procedure listed below is for the LH side.
1. REMOVE REAR NO. 2 SEAT ASSEMBLY LH
(a) Remove the rear No. 2 seat assembly LH Removal.
2. REMOVE REAR NO. 1 FLOOR STEP COVER Removal
3. REMOVE QUARTER SCUFF PLATE LH Removal
4. REMOVE REAR DOOR SCUFF PLATE LH Removal
5. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
(a) Partially remove the rear door opening trim weatherstrip so that the rear quarter trim panel assembly LH and deck trim side panel assembly LH can be removed Removal.
6. REMOVE REAR NO. 1 SEAT OUTER LAP BELT ANCHOR COVER Removal
7. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK Removal
8. REMOVE NO. 1 TONNEAU COVER HOLDER CAP (w/o Tonneau Cover) Removal
9. REMOVE FRONT DECK SIDE TRIM COVER (w/ Tonneau Cover) Removal
10. REMOVE ASSIST GRIP PLUG Removal
11. REMOVE ASSIST GRIP SUB-ASSEMBLY Removal
12. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
Remove the bolt and disconnect the rear No. 1 seat outer belt floor anchor.
Remove the bolt and disconnect the rear No. 2 seat outer belt floor anchor.
for RH Side:
Remove the bolt and disconnect the rear No. 2 seat outer belt floor anchor.

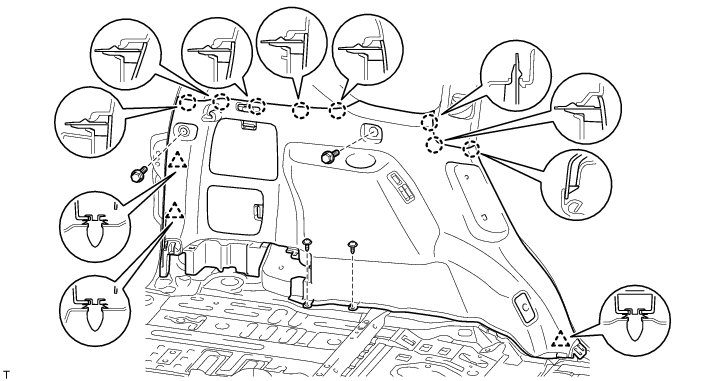

(a) Remove the 2 bolts and 2 screws.
(b) Detach the 3 clips and 8 claws.
(c) Disconnect each connector and remove the deck trim side panel.
13. REMOVE REAR QUARTER TRIM PANEL ASSEMBLY LH Removal
14. REMOVE AMPLIFIER BRACKET (for LH Side, w/ Woofer) Removal
15. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY WITH BRACKET (for LH Side, w/ Woofer) Removal
16. REMOVE NO. 1 SPEAKER WITH BOX ASSEMBLY (for LH Side, w/ Woofer) Removal
17. REMOVE REAR NO. 2 SEAT OUTER BELT ASSEMBLY LH
Remove the bolt and rear No. 2 seat outer belt shoulder anchor.
Remove the bolt and rear No. 2 seat outer belt assembly.
18. REMOVE REAR SEAT OUTER BELT ANCHOR PLATE SUB-ASSEMBLY LH
(a) Remove the bolt and anchor plate.
19. REMOVE SEAT BELT ANCHOR PLATE ASSEMBLY (for RH Side)
(a) Remove the 2 bolts and anchor plate.
