Seat Belt Tensioner: Description and Operation

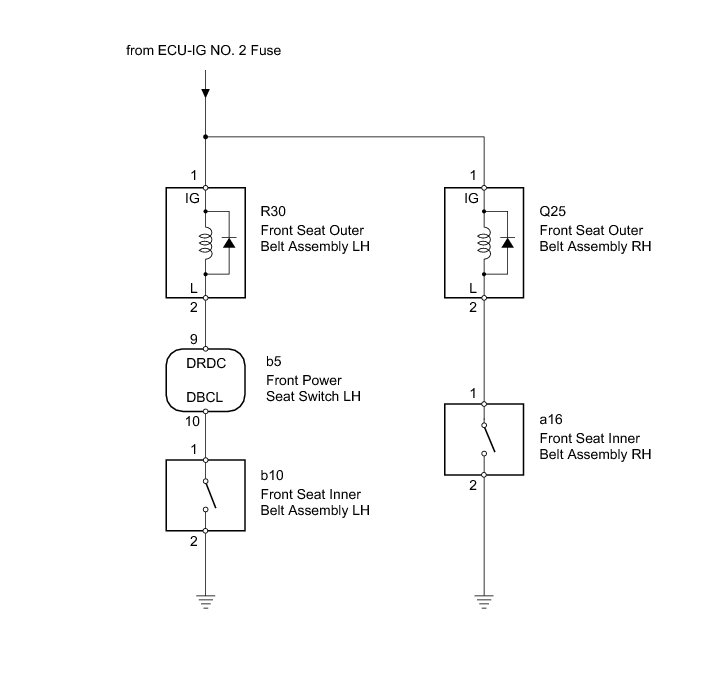

SEAT BELT: SEAT BELT TENSION REDUCER SYSTEM: SYSTEM DIAGRAM









SYSTEM DESCRIPTION

The front seat belts are equipped with the seat belt tension reducer system. This mechanism can help reduce the belt tension applied to the occupants in the front seats when the seat belts are fastened.
