Removal

SEAT BELT: FRONT PASSENGER SEAT BELT WARNING LIGHT: REMOVAL

1. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (w/o Navigation System)

(a) Remove the air conditioning control assembly Removal.

2. REMOVE DISPLAY AND NAVIGATION MODULE DISPLAY (w/ Navigation System)

(a) Remove the display and navigation module display Removal.

3. REMOVE ACCESSORY METER ASSEMBLY WITH BRACKET (w/o Navigation System) Removal

4. REMOVE HEATER CONTROL RETAINER (w/o Navigation System) Disassembly

5. REMOVE HEATER CONTROL SWITCH BOARD (w/o Navigation System)





(a) Remove the 4 screws and heater control switch board.

(b) Disconnect the flexible ribbon cable.

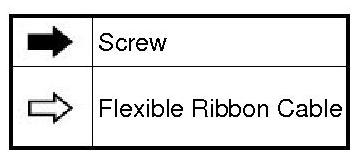

Text in Illustration
