Removal

SUPPLEMENTAL RESTRAINT SYSTEMS: STEERING PAD: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION:
Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTICE:
* w/ Navigation System:
After the engine switch is turned off, the display and navigation module display (navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

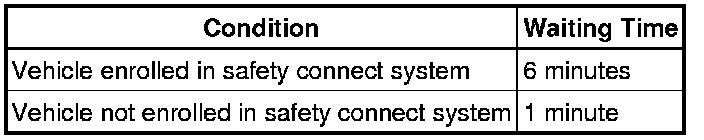

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE LOWER NO. 3 STEERING WHEEL COVER

(a) Detach the 2 claws and remove the cover.





3. REMOVE LOWER NO. 2 STEERING WHEEL COVER

(a) Detach the 2 claws and remove the cover.





4. REMOVE STEERING PAD

(a) Using a T30 "TORX" socket wrench, loosen the 2 screws until the groove along the screw circumference catches on the screw case.





Text in Illustration





(b) Pull out the steering pad from the steering wheel as shown in the illustration. Then support the steering pad with one hand.





NOTICE:
When removing the steering pad, do not pull the airbag wire harness.

(c) Disconnect the horn connector.

(d) Disconnect the 2 connectors and remove the steering pad.

NOTICE:
When handling the airbag connector, take care not to damage the airbag wire harness.
