SUPPLEMENTAL RESTRAINT SYSTEMS: CURTAIN SHIELD AIRBAG ASSEMBLY: REMOVAL

HINT
* Use the same procedure for the RH and LH sides.
* The procedure listed below is for the LH side.

1. REMOVE ROOF HEADLINING ASSEMBLY

(a) Remove the roof headlining assembly Removal.

2. REMOVE NO. 2 AIR DUCT REAR SIDE (w/ Rear Air Conditioning System) Removal

3. REMOVE NO. 1 AIR DUCT REAR SIDE (w/ Rear Air Conditioning System) Removal

4. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH (w/o Rear No. 2 Seat)

(a) Disconnect the connector.

NOTICE:
When handling the airbag connector, take care not to damage the airbag wire harness.

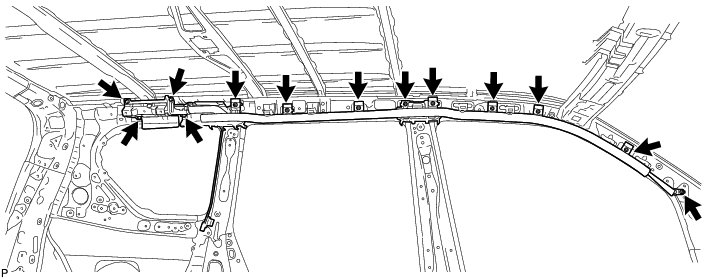

(b) Remove the 13 bolts and curtain shield airbag.





5. REMOVE CURTAIN SHIELD AIRBAG ASSEMBLY LH (w/ Rear No. 2 Seat)

(a) Disconnect the connector.

NOTICE:
When handling the airbag connector, take care not to damage the airbag wire harness.

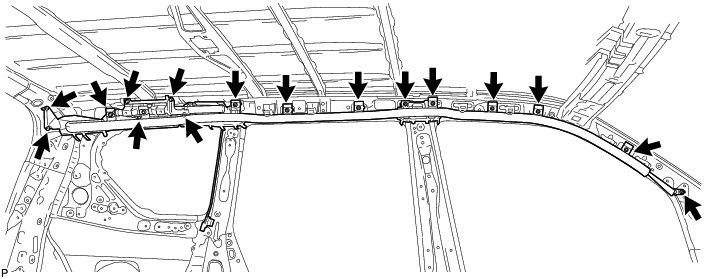

(b) Remove the 17 bolts and curtain shield airbag.
