1UR-FE FUEL: FUEL SYSTEM: SYSTEM DIAGRAM
1.

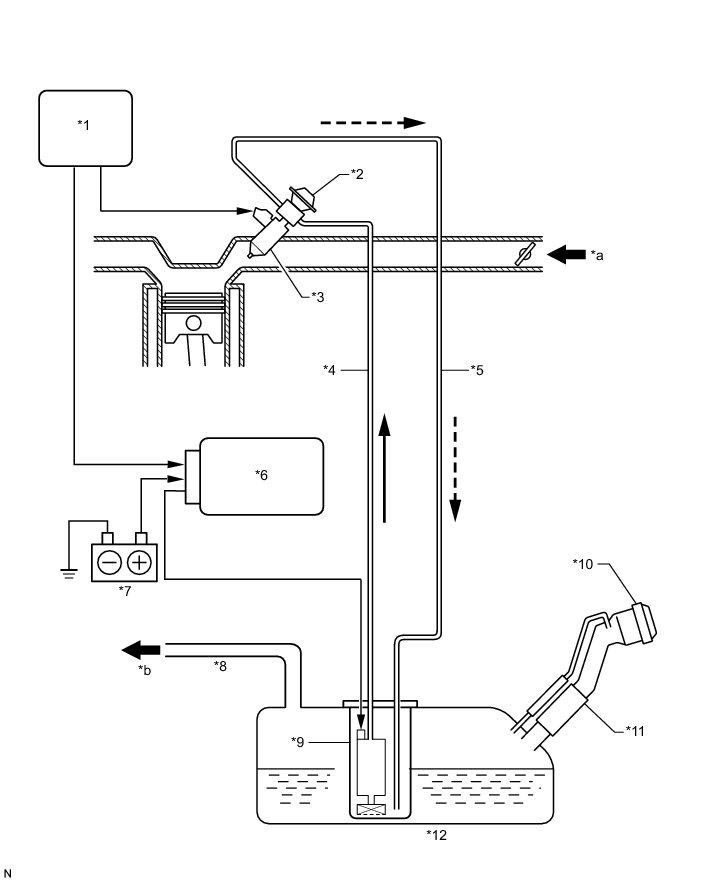

FUEL FLOW DIAGRAM

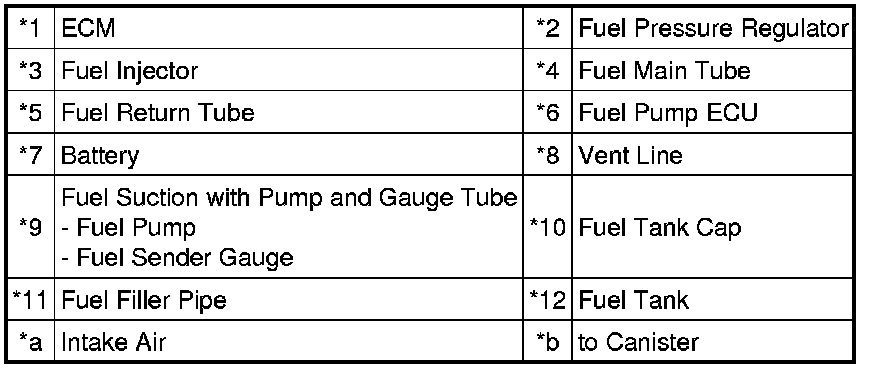

Text in Illustration
2.

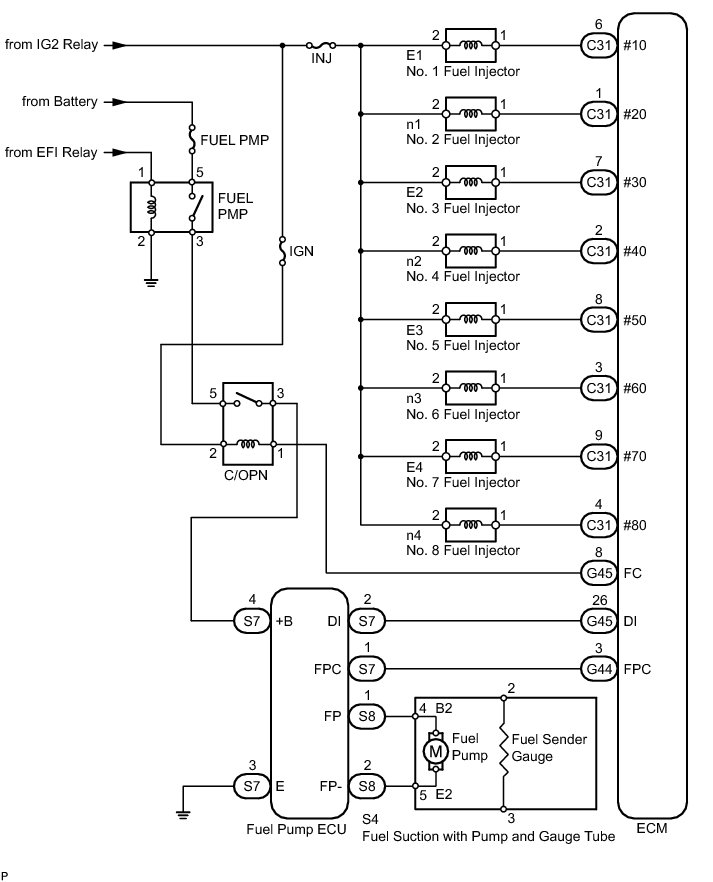

ELECTRICAL CONTROL DIAGRAM
