Canister Purge Solenoid: Testing and Inspection

1UR-FE EMISSION CONTROL: PURGE VALVE: INSPECTION

1. INSPECT PURGE VSV

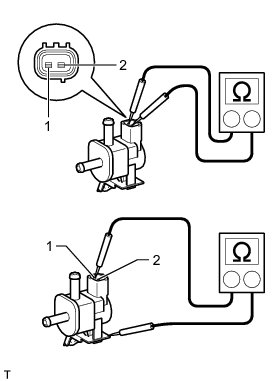

(a) Measure the resistance according to the value(s) in the table below.

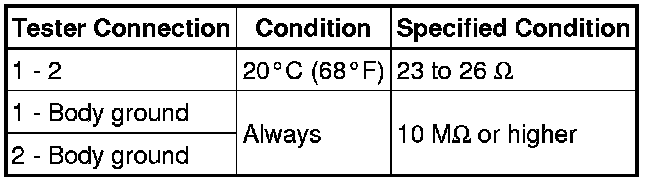

Standard Resistance:





HINT
When measuring the coil resistance, make sure that the surface temperature of the purge VSV is 20°C (68°F).

(b) Check the operation of the purge VSV.

(1) Check that air does not flow from port E to port F.





Text in Illustration





(2) Apply battery voltage to the connector and check the VSV operation.

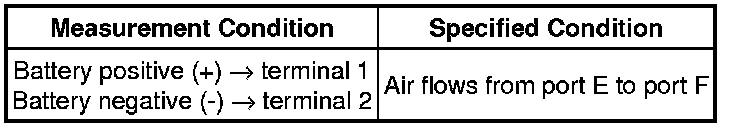

OK:





Text in Illustration





If the result is not as specified, replace the purge VSV.
