Emission Control Systems: Description and Operation

1UR-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: SYSTEM DIAGRAM

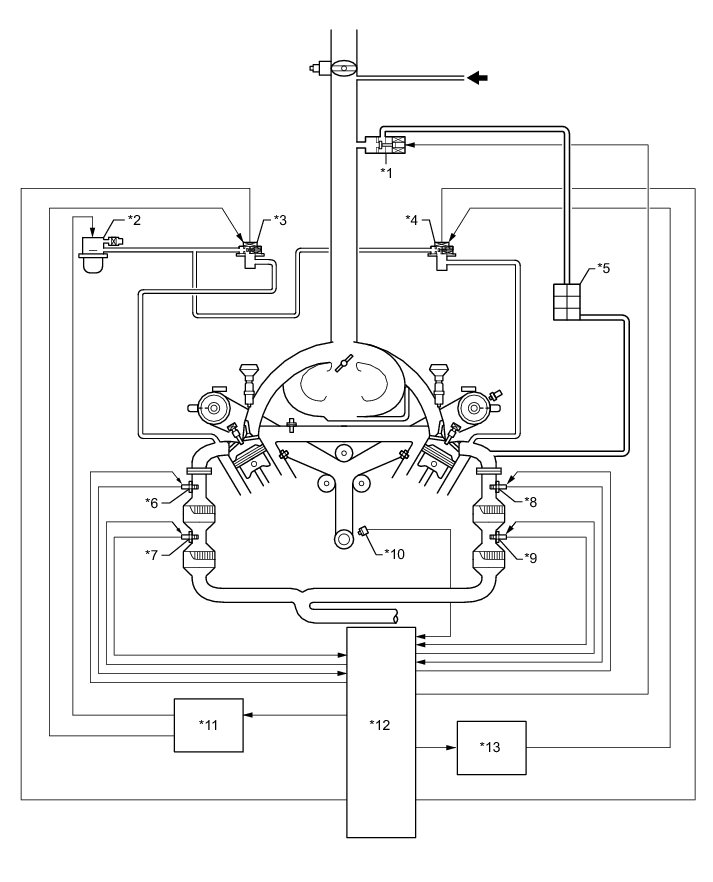

1. EMISSION CONTROL SYSTEM DIAGRAM

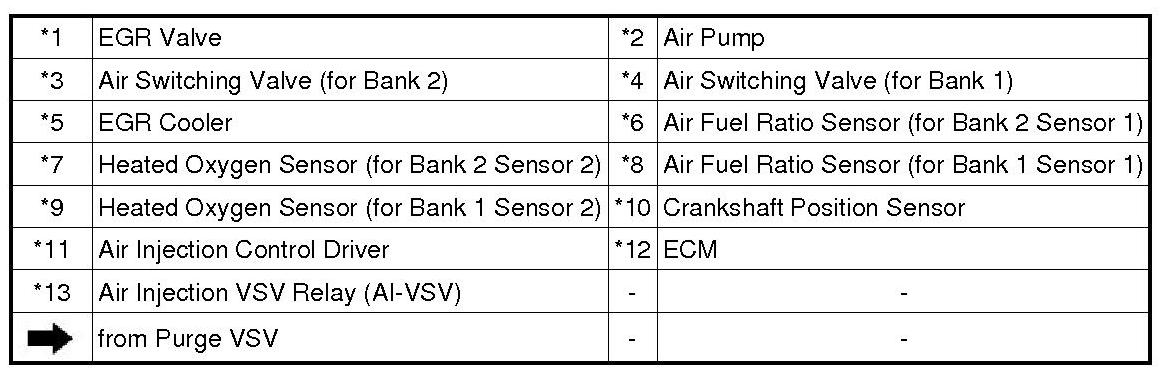

Text in Illustration

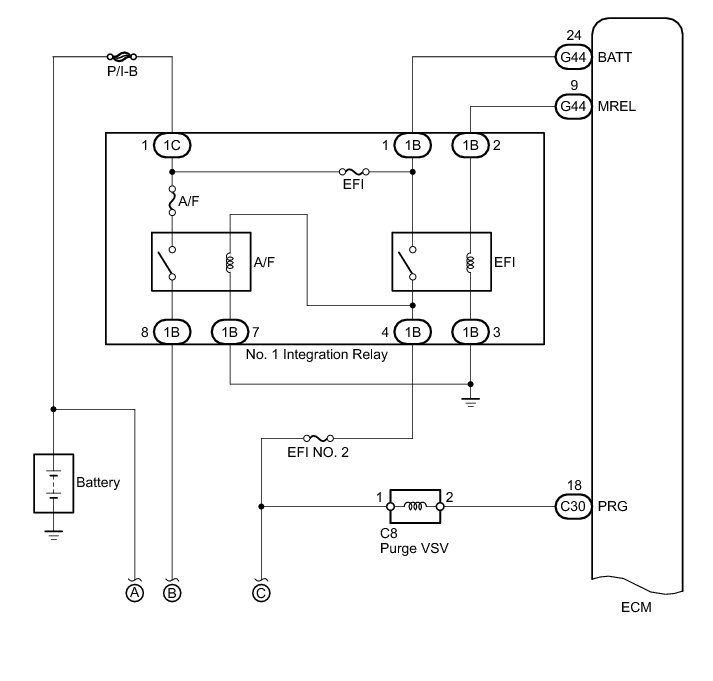

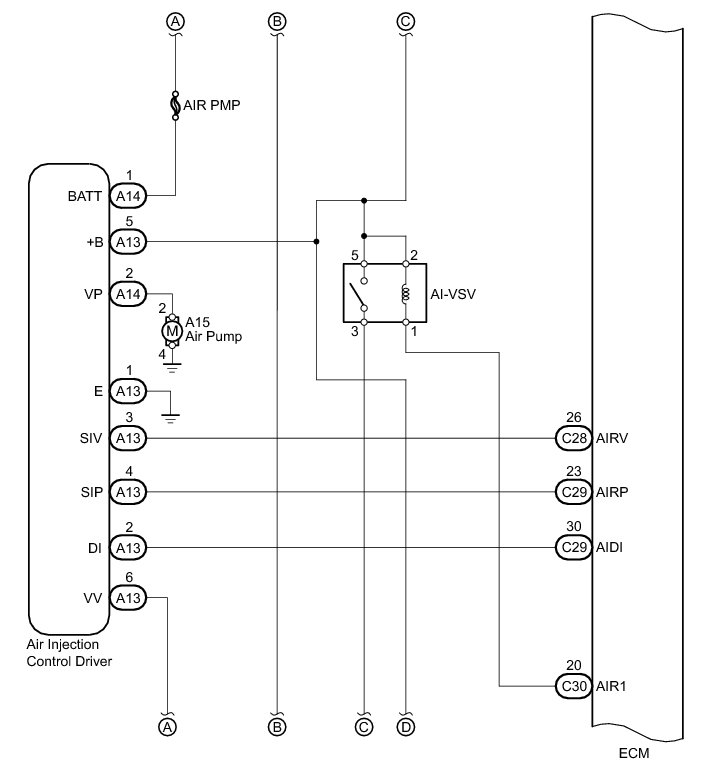

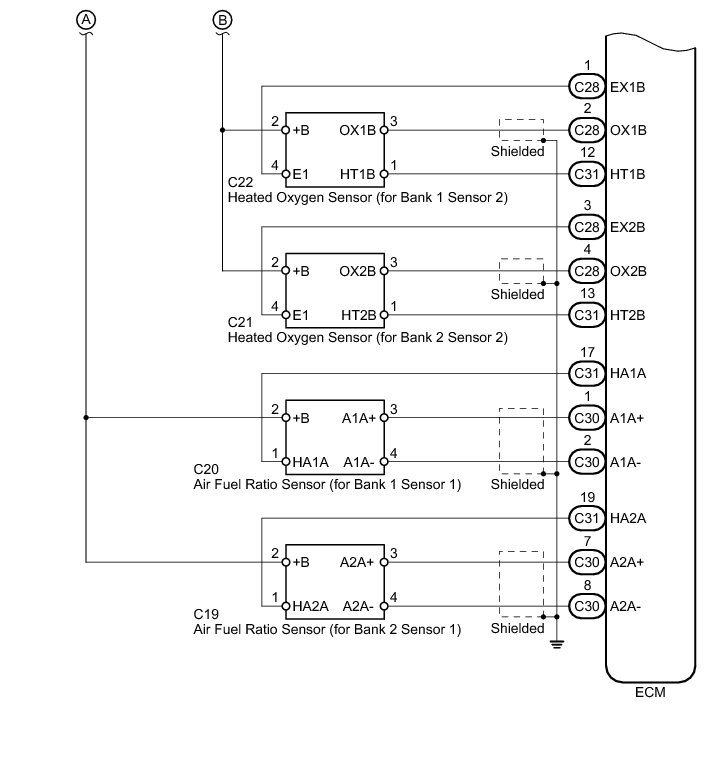

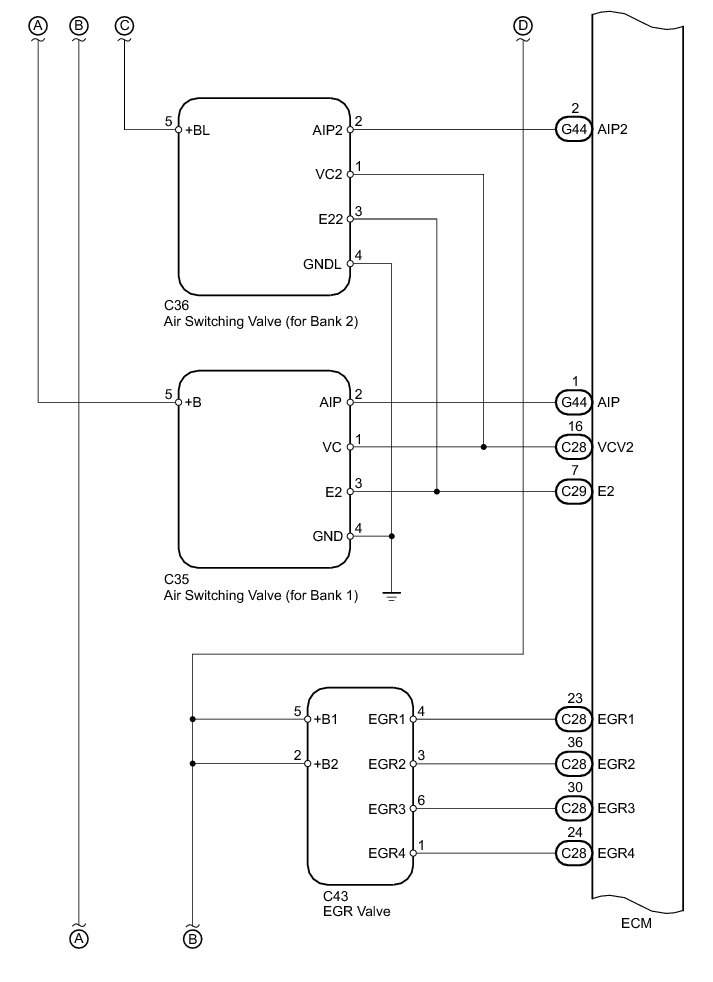

2. EMISSION CONTROL SYSTEM WIRING DIAGRAM

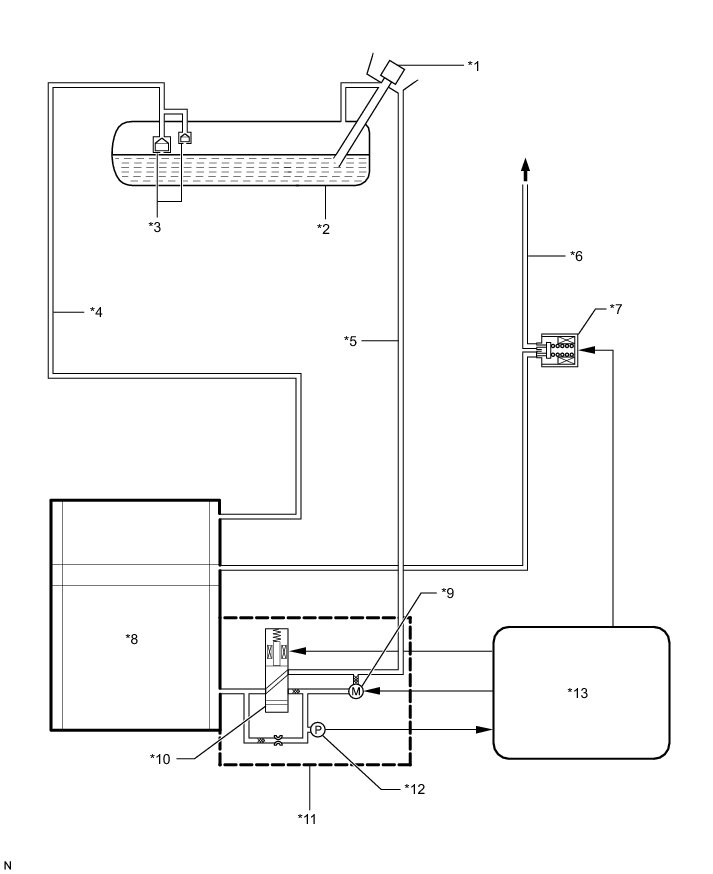

3. EVAP CONTROL SYSTEM DIAGRAM

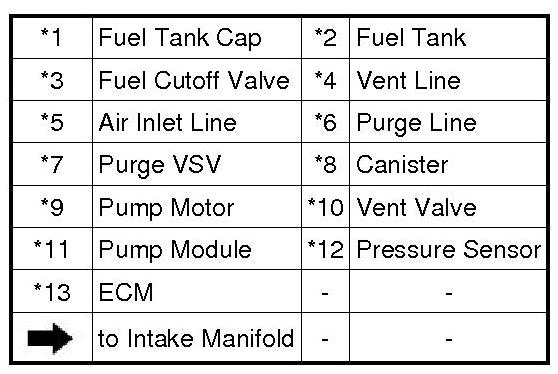

Text in Illustration

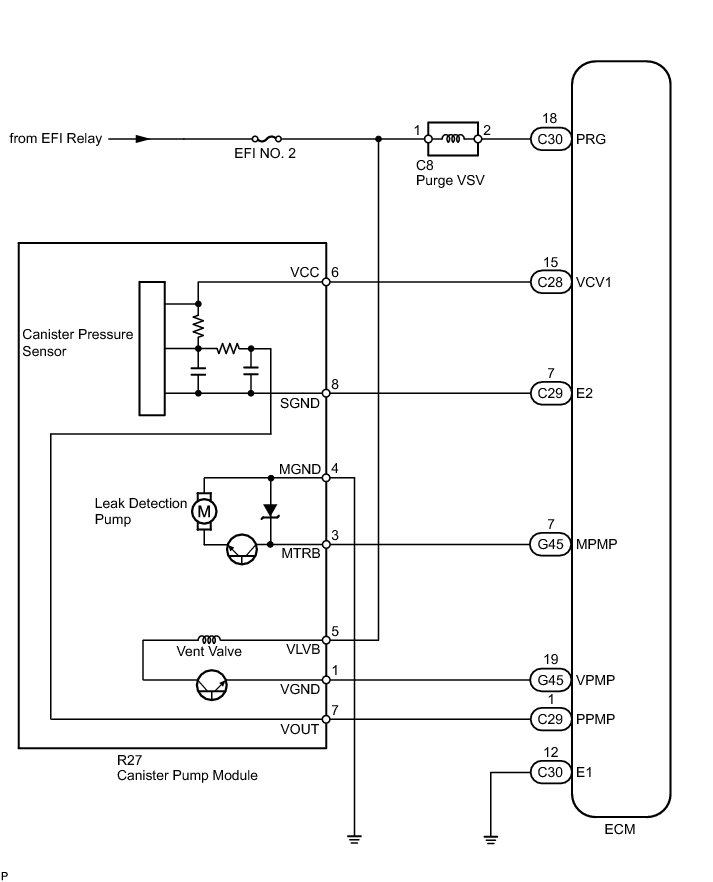

4. EVAP CONTROL SYSTEM WIRING DIAGRAM
