Air Fuel Ratio Sensor

1UR-FE ENGINE CONTROL: AIR FUEL RATIO SENSOR: INSPECTION

1. INSPECT AIR FUEL RATIO SENSOR

(a) Measure the resistance according to the value(s) in the table below.

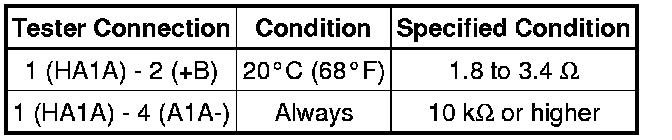

Standard Resistance (for Bank 1):

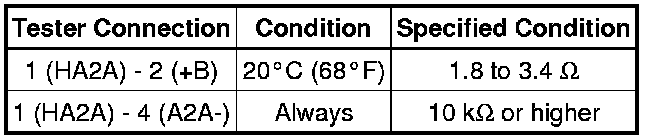

Standard Resistance (for Bank 2):

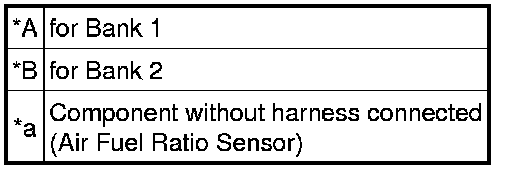

Text in Illustration





If the result is not as specified, replace the air fuel ratio sensor.
