Junction Connector (Short Terminal)

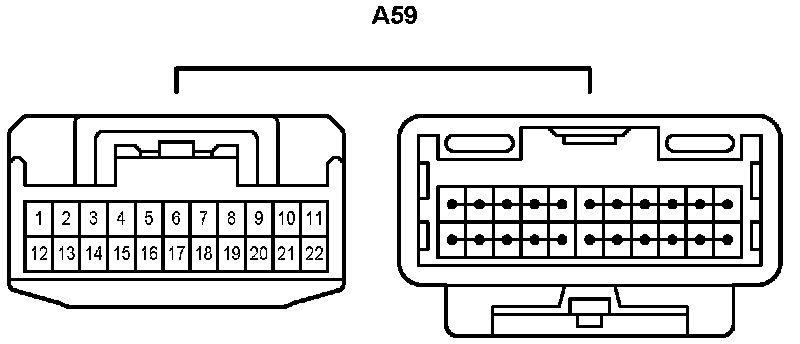

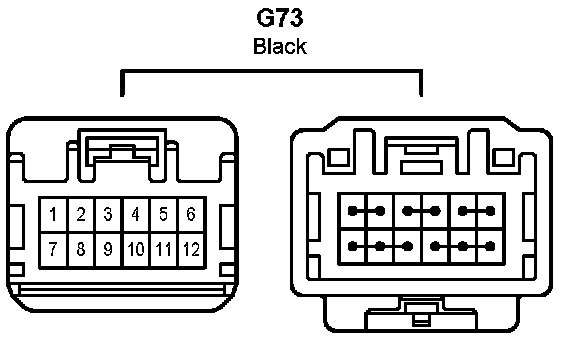

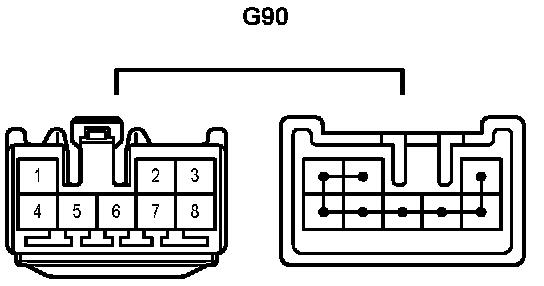

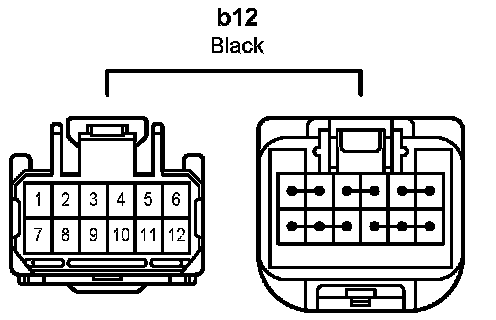

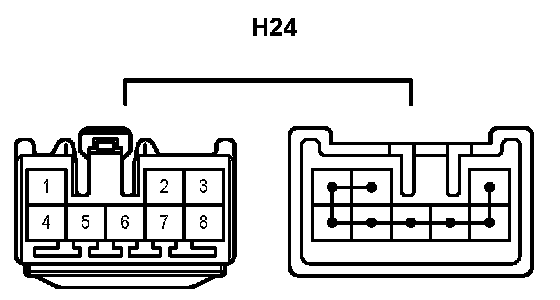

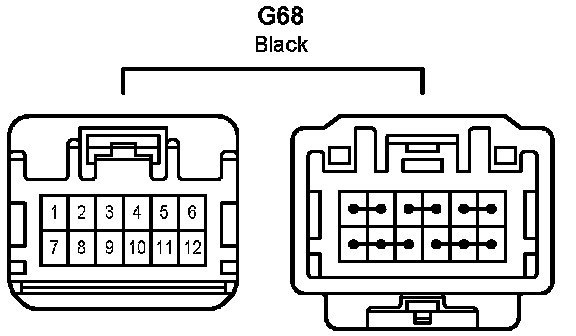

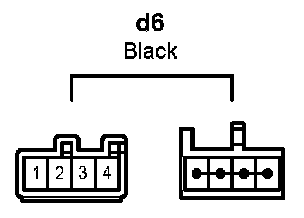

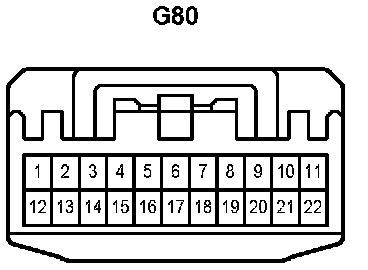

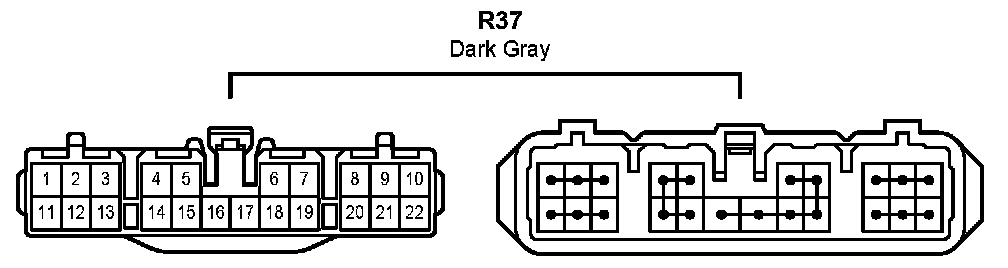

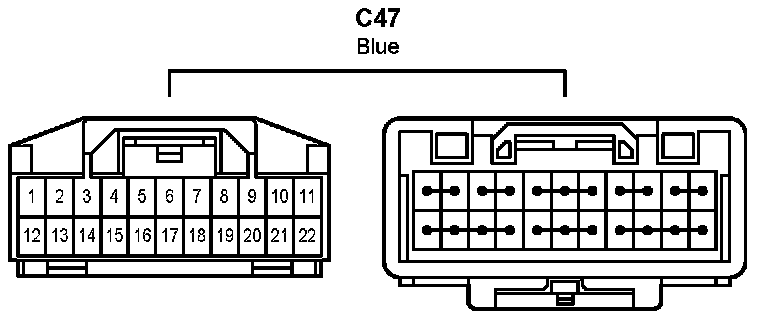

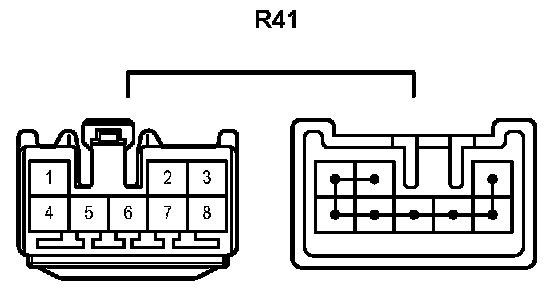

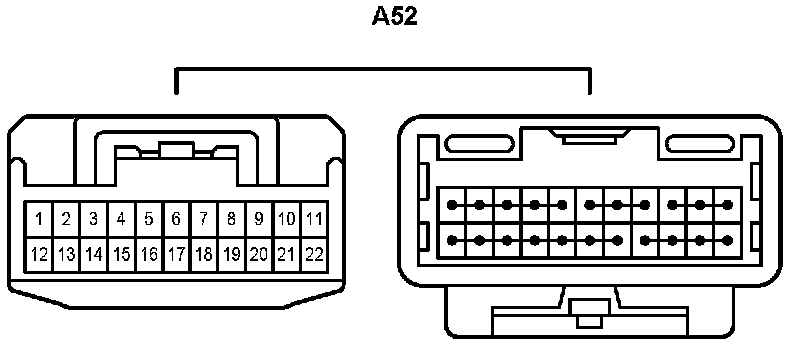

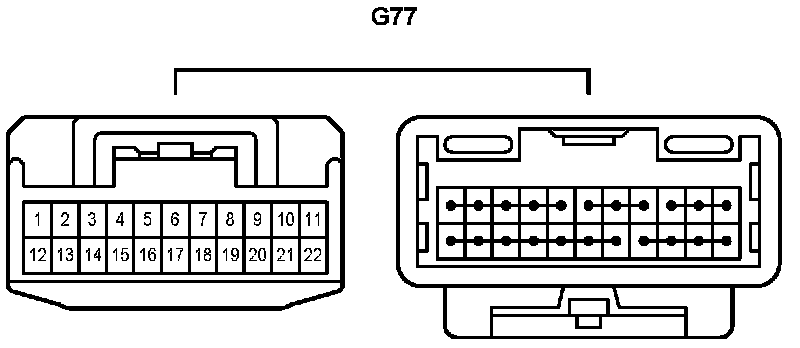

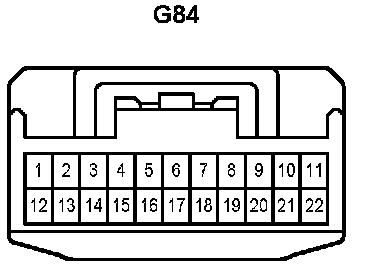

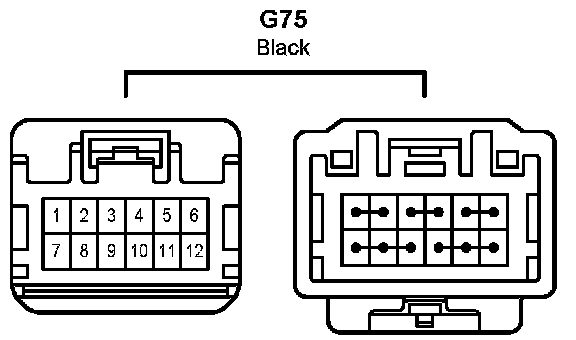

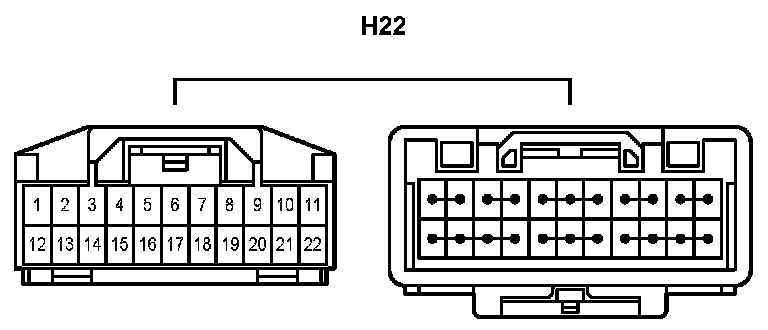

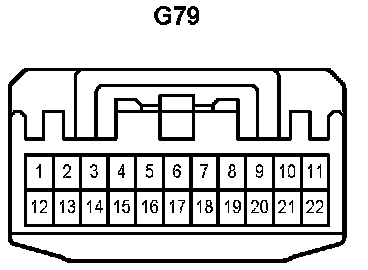

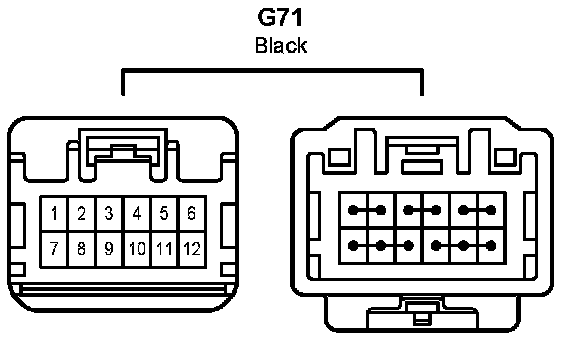

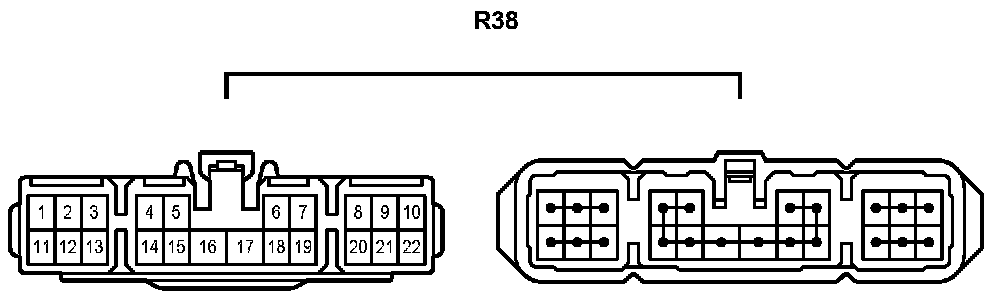

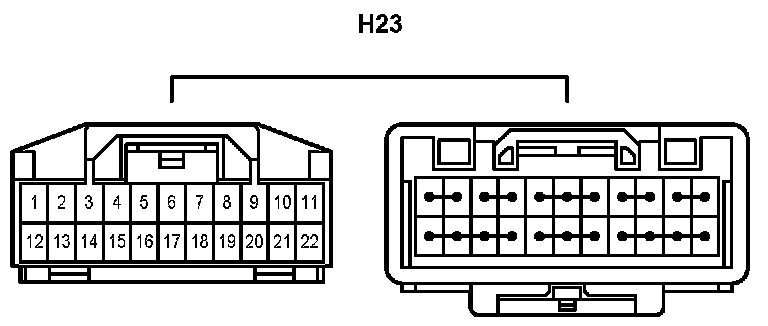

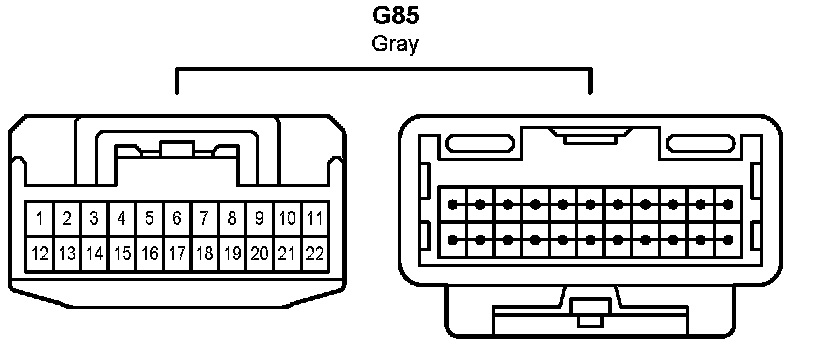

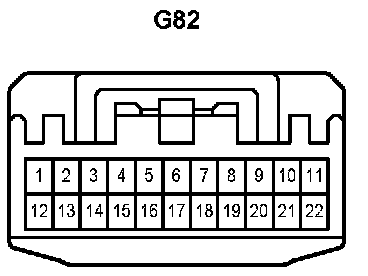

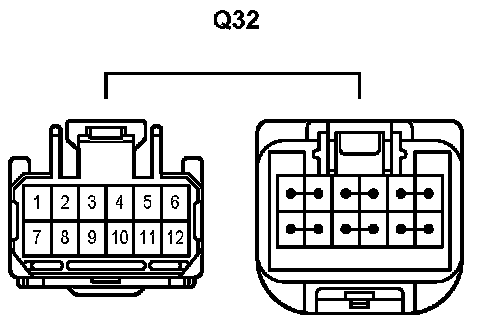

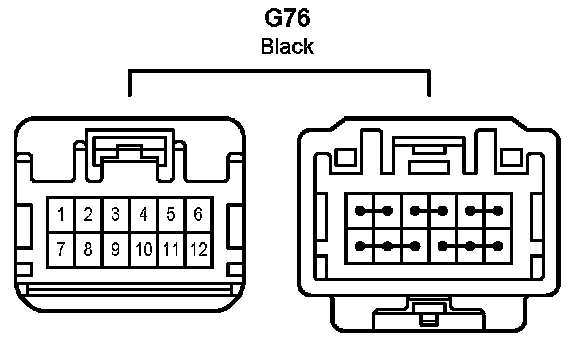

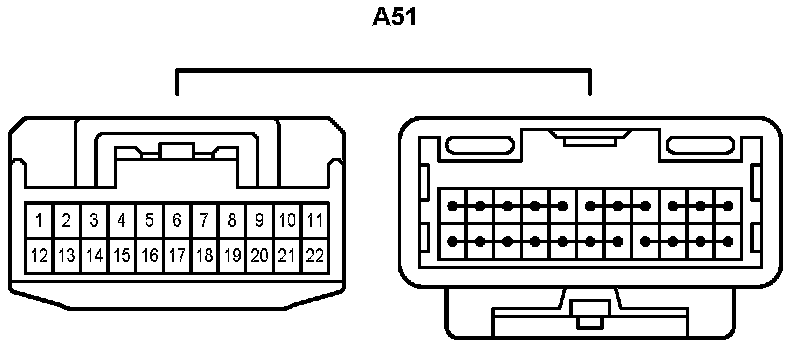

On Left: Female Connector Shapes
On Right: Male Connector Shapes

Connector Colors:

Black



































Blue














Gray








Dark Gray











Connectors with no indicated colors are white in color
