Turn Signal Lamp: Testing and Inspection

LIGHTING (EXT): SIDE TURN SIGNAL LIGHT ASSEMBLY: INSPECTION

1. INSPECT SIDE TURN SIGNAL LIGHT ASSEMBLY LH

(a) Apply battery voltage to the connector and check the LED illumination condition.

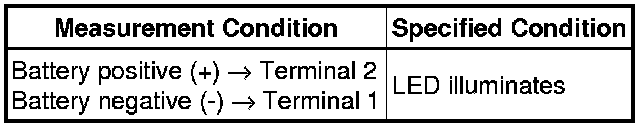

OK:





If the result is not as specified, replace the side turn signal light assembly.

Text in Illustration
