Removal

LIGHTING (EXT): TURN SIGNAL FLASHER ASSEMBLY: REMOVAL

1. REMOVE DOOR SCUFF PLATE ASSEMBLY LH Removal

2. REMOVE COWL SIDE TRIM BOARD LH Removal

3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

4. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal

5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Removal

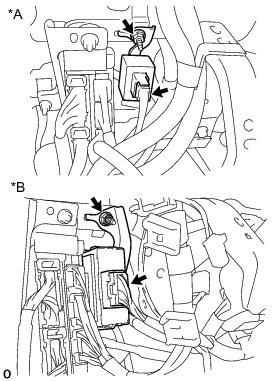

6. REMOVE TURN SIGNAL FLASHER ASSEMBLY

(a) Disconnect the connector.





Text in Illustration





(b) Remove the nut and turn signal flasher.
