Freeze Frame Data

LIGHTING (EXT): LIGHTING SYSTEM: FREEZE FRAME DATA

1. FREEZE FRAME DATA

(a) Whenever a DTC is stored, the headlight swivel ECU stores the current vehicle (sensor) state as Freeze Frame Data.

2. CHECK FREEZE FRAME DATA

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menus: Body Electrical / AFS / Trouble Codes.

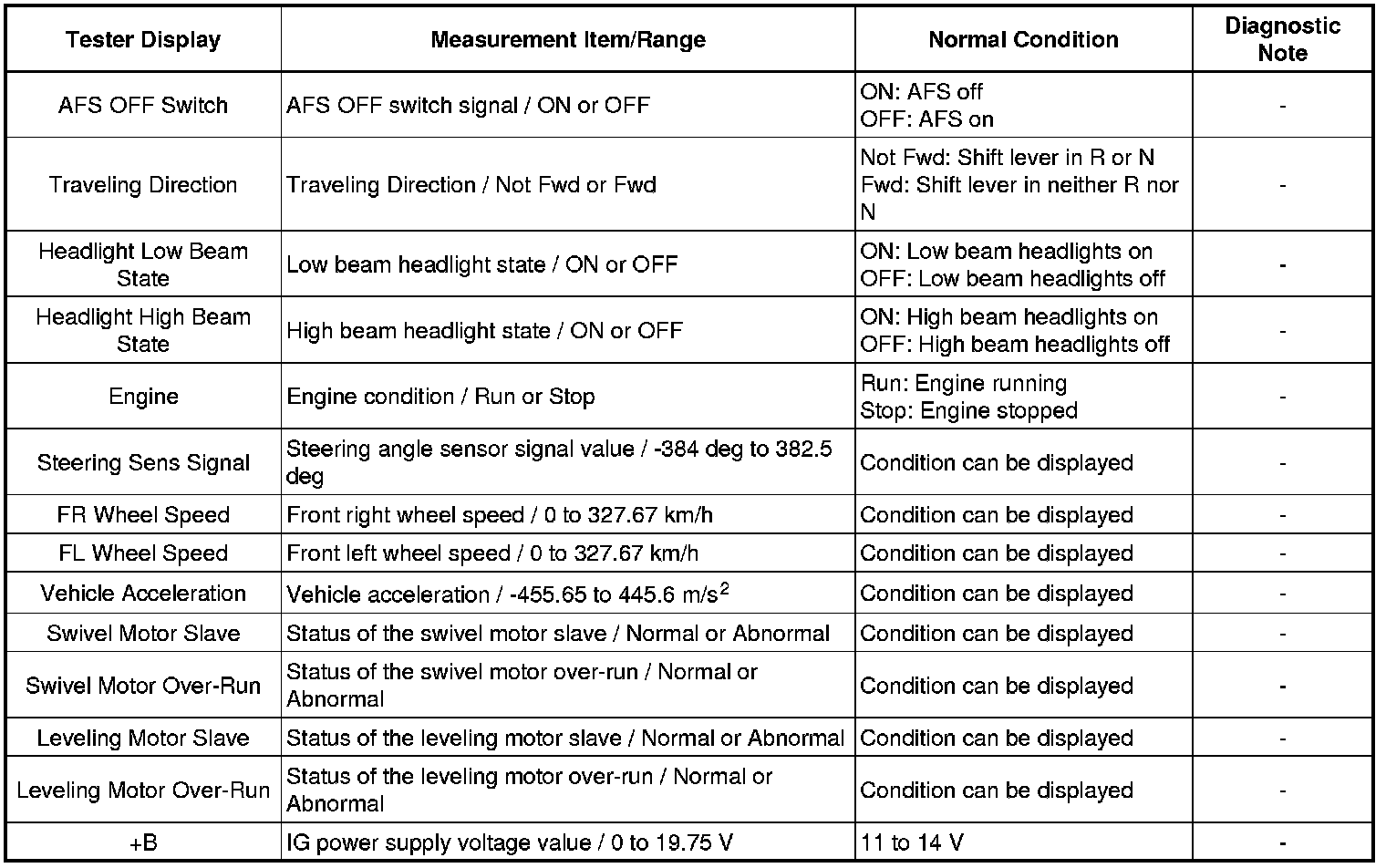

(e) According to the display on the Techstream, select the trouble code data display with Freeze Frame Data.

AFS (w/ AFS)





3. CLEAR FREEZE FRAME DATA

NOTICE:
Clearing the DTCs will also clear the Freeze Frame Data.

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Clear the DTCs and Freeze Frame Data Reading and Clearing Diagnostic Trouble Codes.
