Tail Lamp: Testing and Inspection

LIGHTING (EXT): REAR COMBINATION LIGHT ASSEMBLY: INSPECTION

1. INSPECT REAR COMBINATION LIGHT LENS AND BODY LH

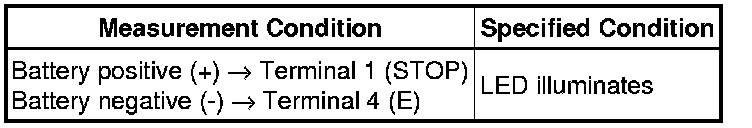

(a) Check the stop light.





(1) Apply battery voltage to the connector and check the LED illumination condition.

OK:





If the result is not as specified, replace the rear combination light lens and body.

Text in Illustration

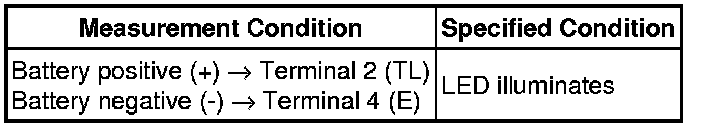

(b) Check the taillight.





(1) Apply battery voltage to the connector and check the LED illumination condition.

OK:





If the result is not as specified, replace the rear combination light lens and body.

Text in Illustration
