Component Tests and General Diagnostics

LIGHTING (INT): ROOM LIGHT (for Front): INSPECTION

1. INSPECT MAP LIGHT ASSEMBLY

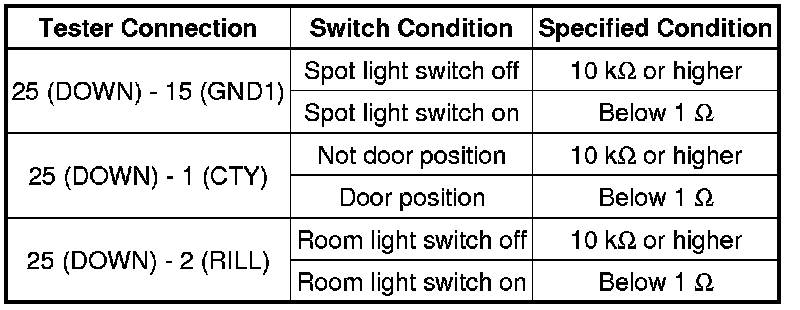

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:





If the result is not as specified, replace the map light assembly.

Text in Illustration
