Dome Lamp Switch: Testing and Inspection

LIGHTING (INT): BACK DOOR COURTESY SWITCH: INSPECTION

1. INSPECT BACK DOOR COURTESY LIGHT SWITCH ASSEMBLY

(a) Measure the resistance according to the value(s) in the table below.

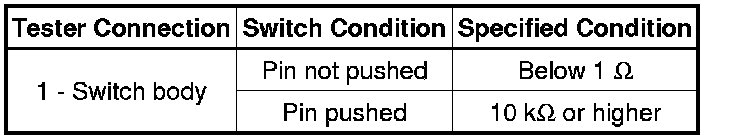

Standard Resistance:





If the result is not as specified, replace the back door courtesy light switch assembly.

Text in Illustration
