Interior Lighting System

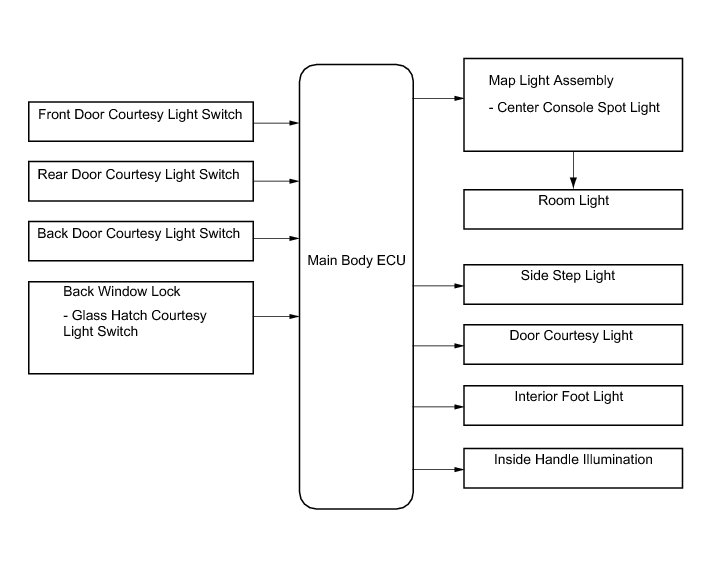

LIGHTING (INT): LIGHTING SYSTEM: SYSTEM DIAGRAM









SYSTEM DESCRIPTION

1. ILLUMINATION CONTROL SYSTEM (Illuminated Entry System)

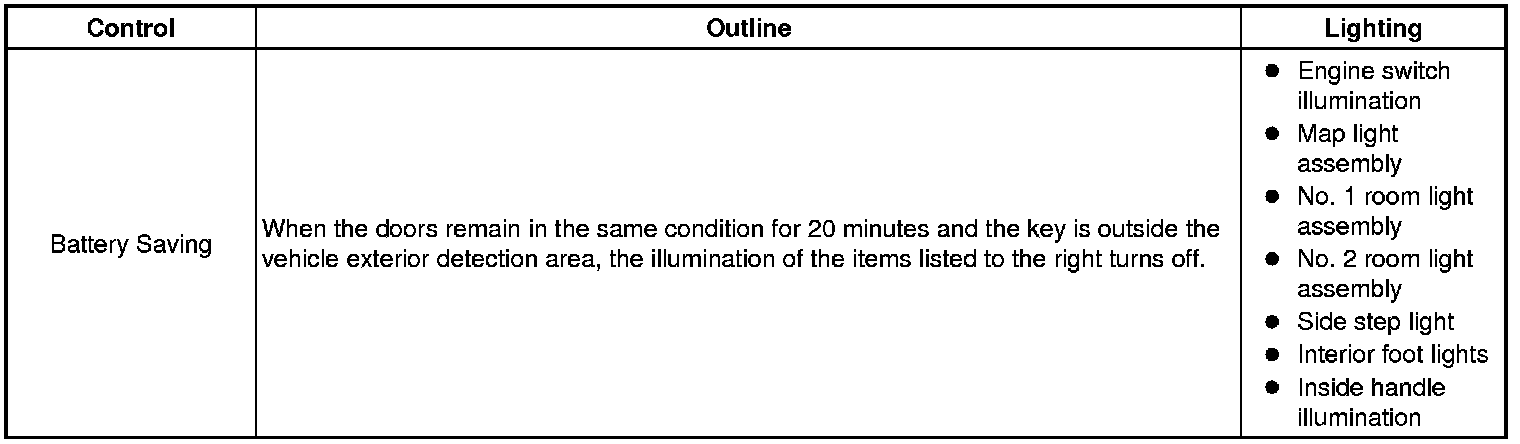

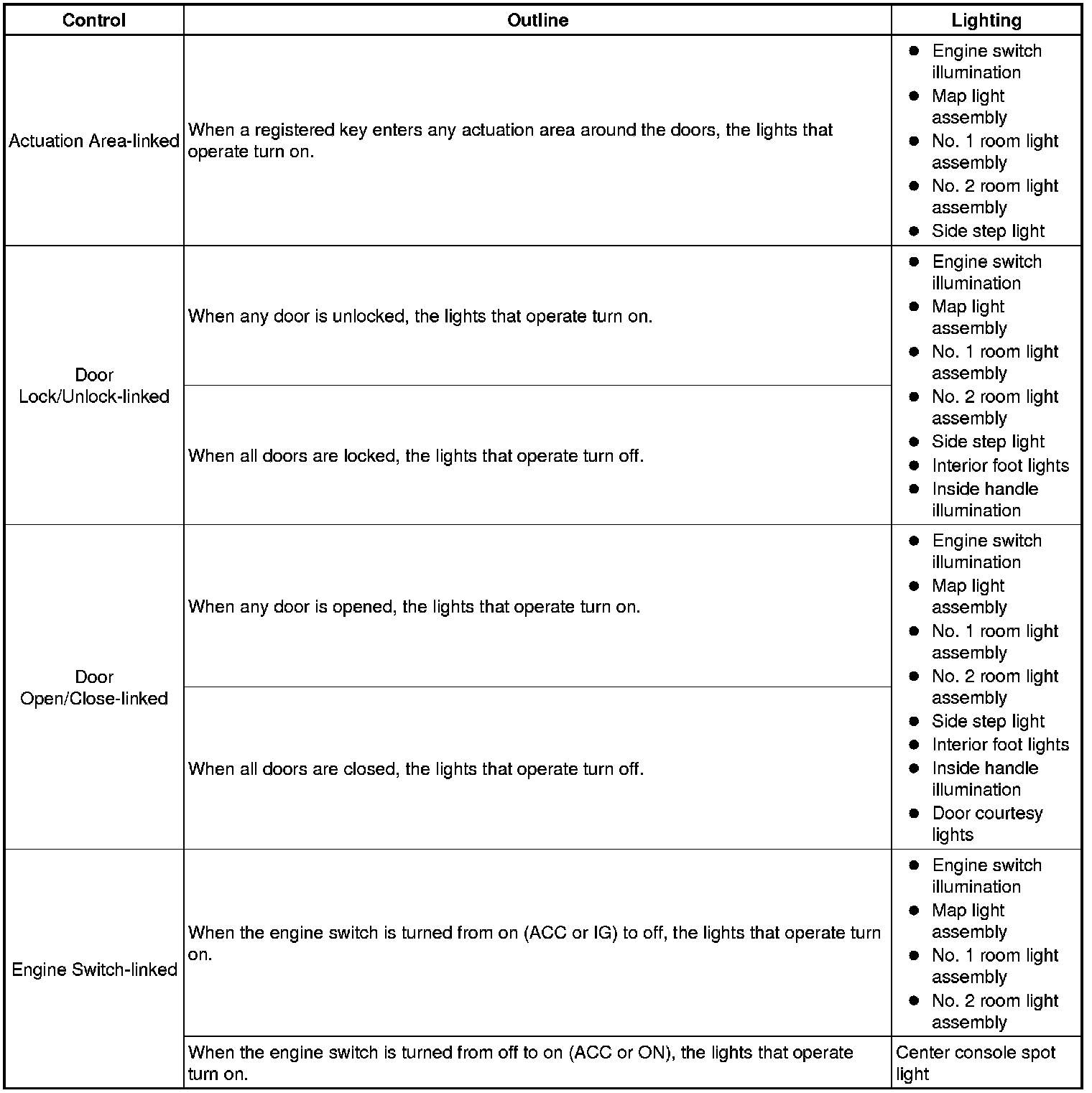

(a) The illuminated entry system has the following control functions:
