Personal Light (for Front Door)

LIGHTING (INT): PERSONAL LIGHT (for Front Door): INSPECTION

1. INSPECT FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH

(a) Apply battery voltage to the connector and check the LED illumination.

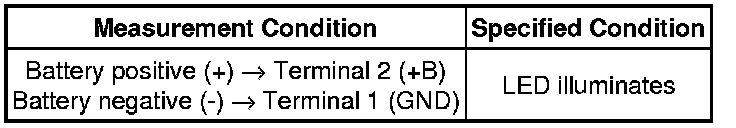

OK:





If the result is not as specified, replace the front door inside handle illumination light assembly LH.

Text in Illustration
