Personal Light (for Rear)

LIGHTING (INT): PERSONAL LIGHT (for Rear): INSPECTION

1. INSPECT NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

(a) Apply battery voltage to the connector and check the LED illumination condition.

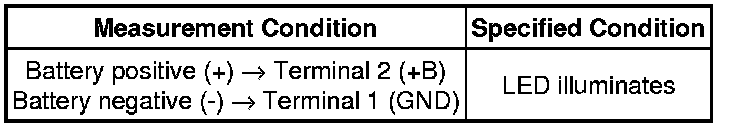

OK:





If the result is not as specified, replace the No. 1 interior illumination light assembly.

Text in Illustration
