Console Box Light

LIGHTING (INT): CONSOLE BOX LIGHT: INSPECTION

1. INSPECT CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY

(a) Apply battery voltage to the connector and check the LED illumination condition.

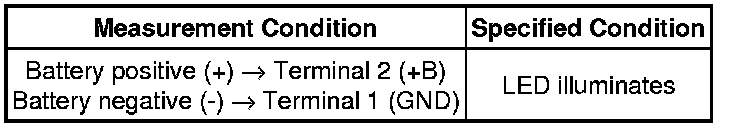

OK:





If the result is not as specified, replace the console box illumination light assembly.

Text in Illustration
