Center Mounted Brake Lamp: Testing and Inspection

LIGHTING (EXT): HIGH MOUNTED STOP LIGHT ASSEMBLY: INSPECTION

1. INSPECT CENTER STOP LIGHT ASSEMBLY

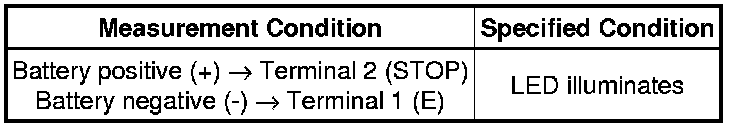

(a) Apply battery voltage to the connector and check the LED illumination condition.





OK:





If the result is not as specified, replace the center stop light assembly.

Text in Illustration
