Installation

LIGHTING (EXT): AUTOMATIC LIGHT CONTROL SENSOR: INSTALLATION

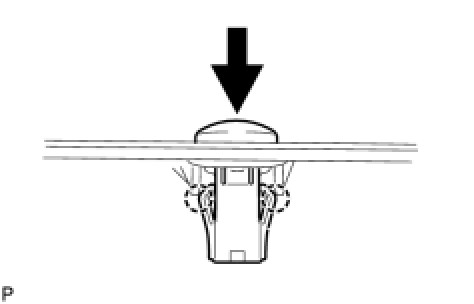

1. INSTALL AUTOMATIC LIGHT CONTROL SENSOR

(a) Attach the 2 claws to install the sensor.





(b) Connect the connector.

2. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY

(a) Install the instrument panel safety pad sub-assembly Installation.
