Installation

1UR-FE FUEL: FUEL SENDER GAUGE ASSEMBLY: INSTALLATION

1. INSTALL FUEL SENDER GAUGE ASSEMBLY

(a) Set the fuel sender gauge on the No. 1 fuel sub-tank. Then slide the fuel sender gauge downward to install it.

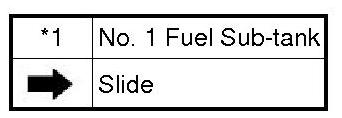

Text in Illustration





(b) Connect the fuel sender gauge connector.

2. INSTALL FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY

(a) Install the fuel suction with pump and gauge tube assembly Installation.
