Removal

PARK ASSIST / MONITORING: CLEARANCE WARNING BUZZER: REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

NOTICE:
* w/ Navigation System:
After the engine switch is turned off, the display and navigation module display (navigation system) records various types of memory and settings. As a result, after turning the engine switch off, be sure to wait for the time specified in the following table before disconnecting the cable from the negative (-) battery terminal.

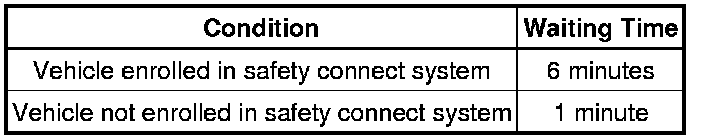

Waiting Time before Disconnecting Cable from Negative (-) Battery Terminal:





* When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

2. REMOVE INSTRUMENT SIDE PANEL RH Removal

3. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL GARNISH Removal

4. REMOVE NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY Removal

5. REMOVE INSTRUMENT PANEL FINISH PANEL END LH Removal

6. REMOVE INSTRUMENT PANEL FINISH PANEL END RH Removal

7. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY Removal

8. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY Removal

9. REMOVE FRONT UPPER CONSOLE PANEL GARNISH Removal

10. REMOVE NO. 1 INSTRUMENT PANEL FINISH CUSHION Removal

11. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL ASSEMBLY Removal

12. REMOVE RADIO RECEIVER ASSEMBLY

(a) w/o Navigation System:

Remove the radio receiver assembly Removal.

(b) w/ Navigation System:

Remove the radio receiver assembly Removal.

13. REMOVE AIR CONDITIONING CONTROL ASSEMBLY (w/o Navigation System) Removal

14. REMOVE DISPLAY AND NAVIGATION MODULE DISPLAY (w/ Navigation System) Removal

15. REMOVE NO. 1 CLEARANCE WARNING BUZZER





(a) Disconnect the connector.

(b) Detach the clamp and remove the No. 1 clearance warning buzzer.
