Mechanical Specifications





SPECIFICATIONS: HEATING / AIR CONDITIONING: TORQUE SPECIFICATIONS

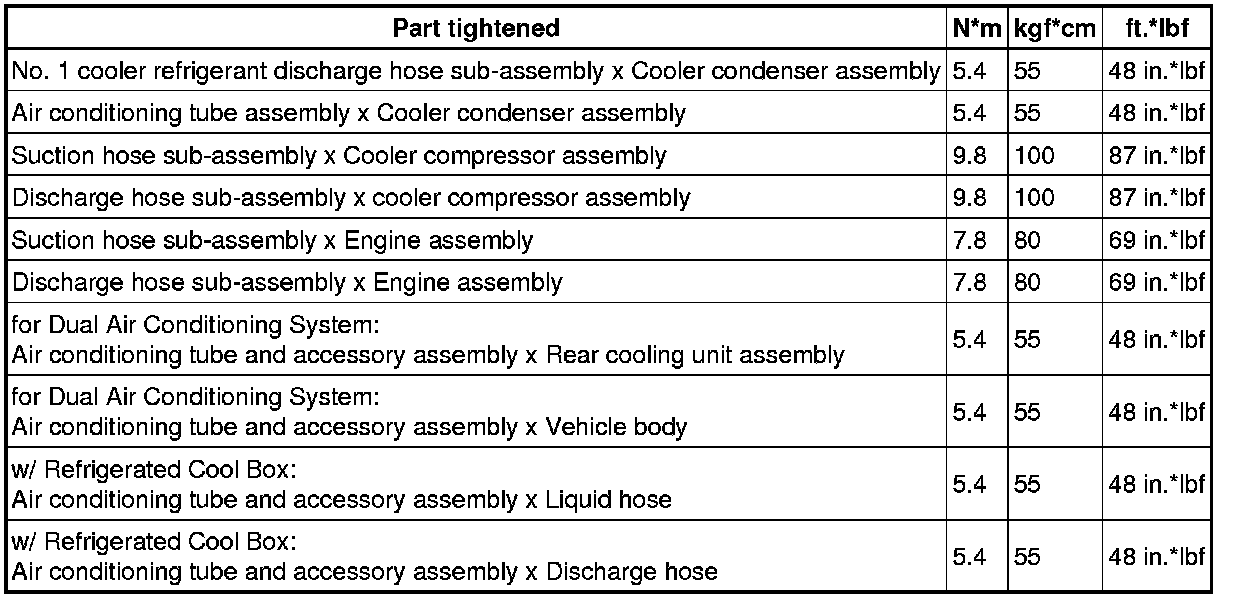

REFRIGERANT LINE

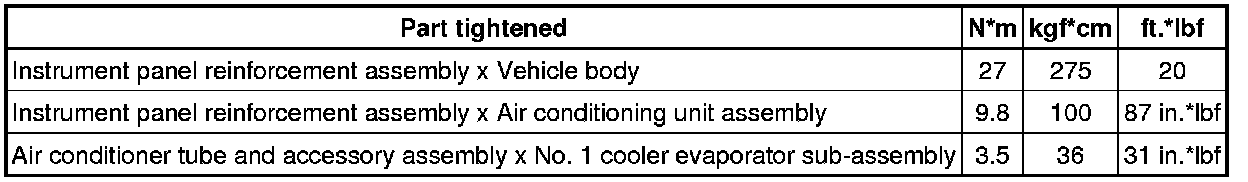

FRONT AIR CONDITIONING UNIT

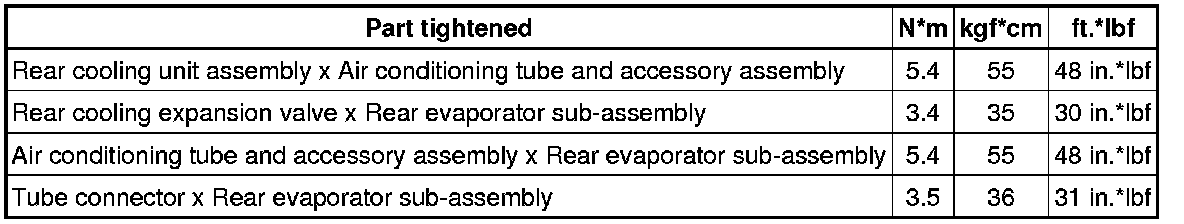

REAR AIR CONDITIONING UNIT





BLOWER UNIT

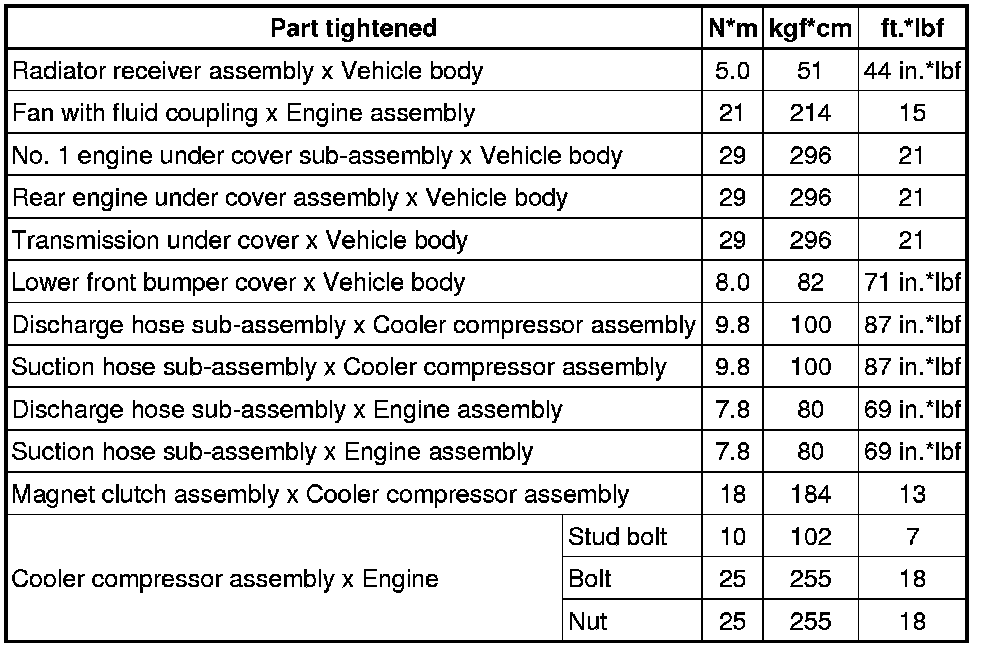

COMPRESSOR

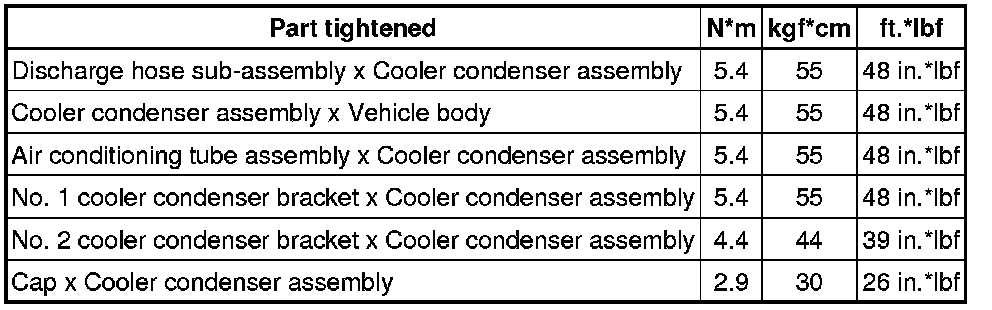

CONDENSER

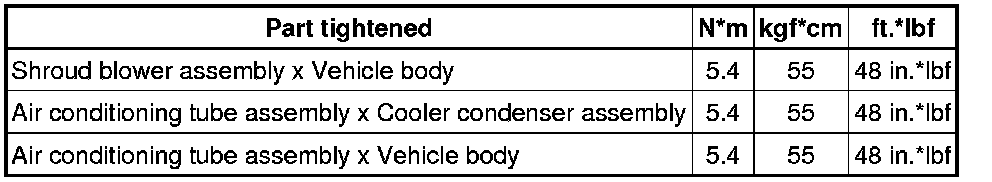

CONDENSER FAN





FRONT EVAPORATOR TEMPERATURE SENSOR





REAR EVAPORATOR TEMPERATURE SENSOR





AIR CONDITIONING PRESSURE SENSOR

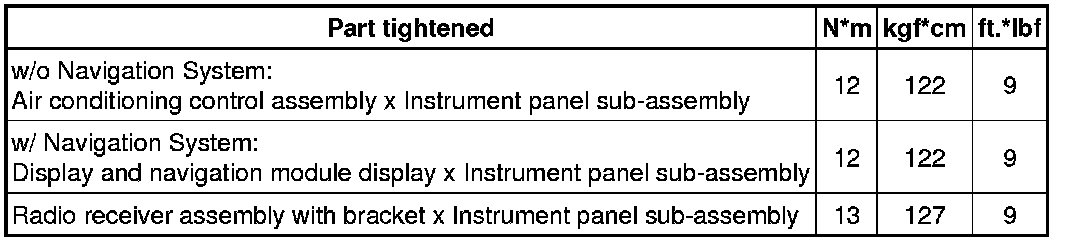

AIR CONDITIONING PANEL
