Home >> Lexus >> 2011 >> GX 460 V8-4.6L (1UR-FE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Hose/Line HVAC >> Service and Repair

Hose/Line HVAC: Service and Repair

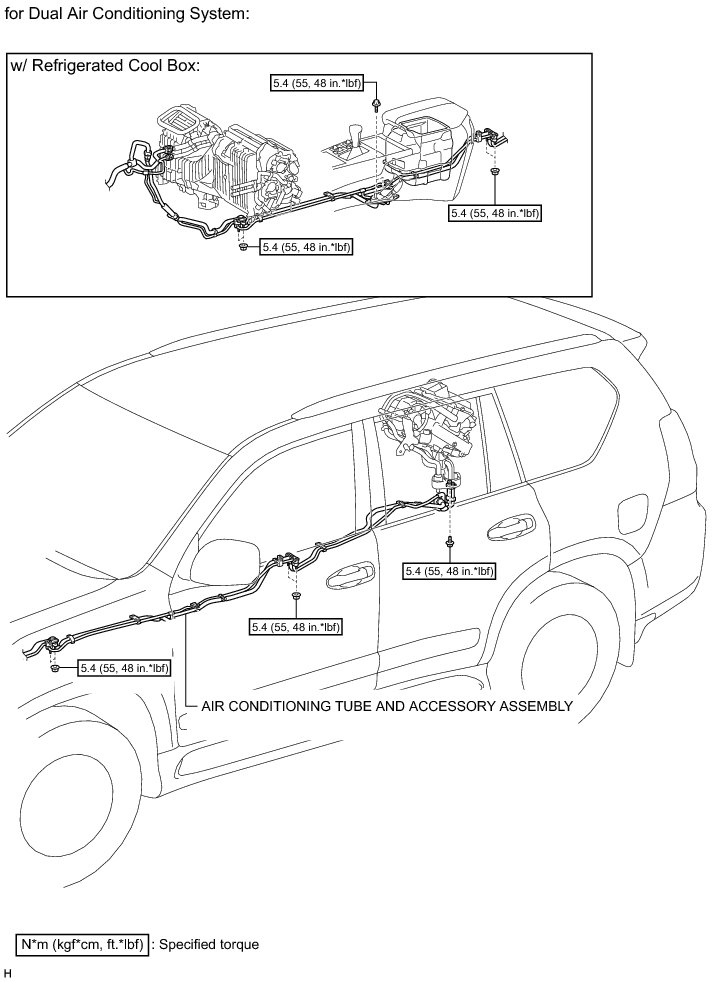

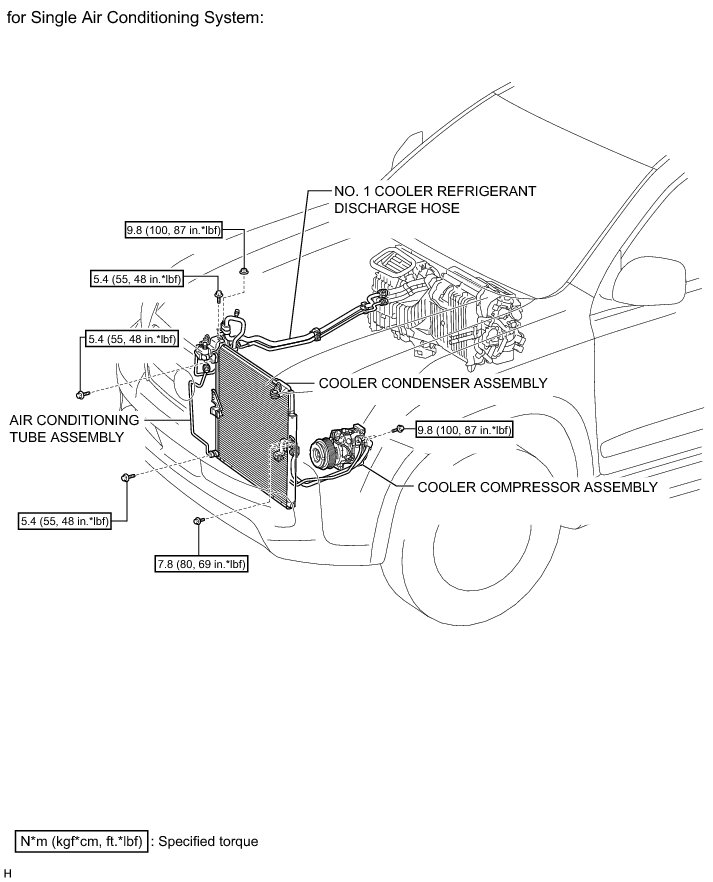

HEATING / AIR CONDITIONING: REFRIGERANT LINE: COMPONENTS
