Front Evaporator Temperature Sensor

HEATING / AIR CONDITIONING: FRONT EVAPORATOR TEMPERATURE SENSOR: INSPECTION

1. INSPECT NO. 1 COOLER THERMISTOR

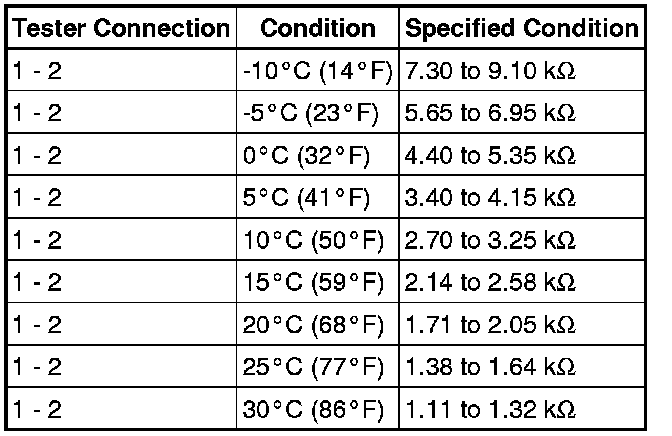

(a) Measure the resistance according to the value(s) in the table below.





Standard Resistance:

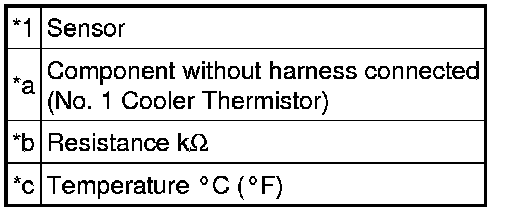

Text in Illustration





HINT

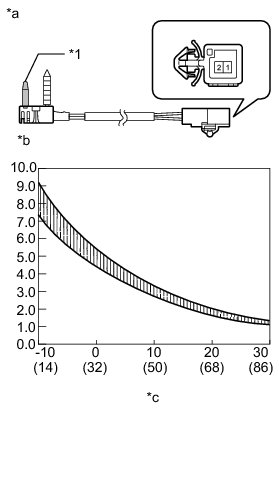

As the temperature increases, the resistance decreases (refer to the graph).

NOTICE:
* Even slightly touching the sensor may change the resistance value. Be sure to hold the connector of the sensor.
* When measuring, the sensor temperature must be almost the same as the ambient temperature.

If the result is not as specified, replace the No. 1 cooler thermistor.
