Blower Motor: Testing and Inspection

HEATING / AIR CONDITIONING: REAR BLOWER MOTOR: INSPECTION

1. INSPECT REAR BLOWER WITH FAN MOTOR SUB-ASSEMBLY

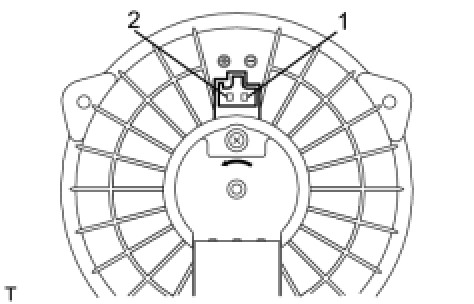

(a) Apply battery voltage and check the operation of the blower motor as shown in the illustration.

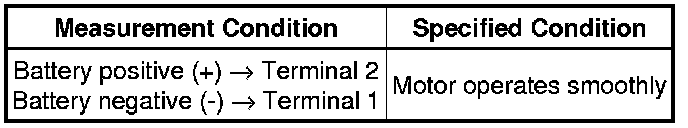

OK:





If the result is not as specified, replace the rear blower with fan motor sub-assembly.
