Home >> Lexus >> 2011 >> GX 460 V8-4.6L (1UR-FE) >> Repair and Diagnosis >> Engine, Cooling and Exhaust >> Engine >> Seals and Gaskets >> Rear Crankshaft Main Bearing Seal >> Service and Repair >> Components

Components

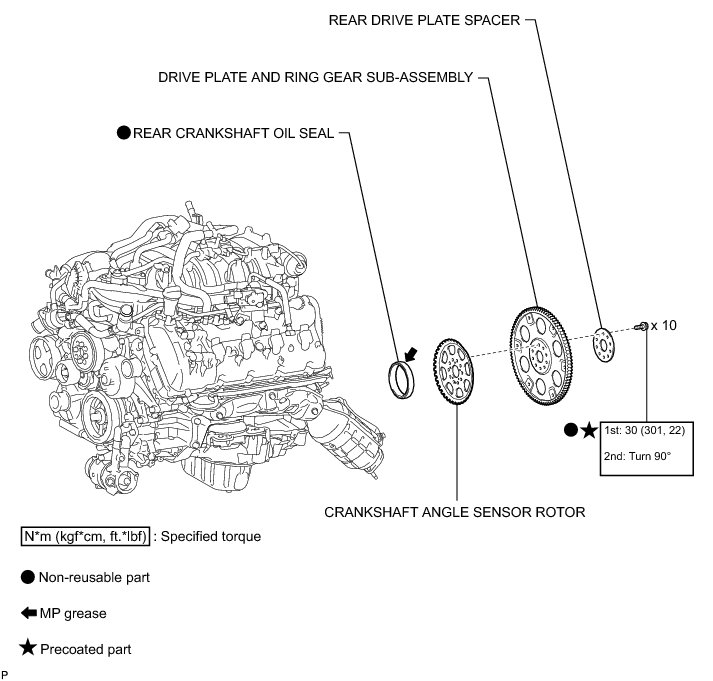

1UR-FE ENGINE MECHANICAL: REAR CRANKSHAFT OIL SEAL: COMPONENTS
