Disassembly

1UR-FE LUBRICATION: OIL PUMP: DISASSEMBLY

1. REMOVE OIL PUMP COVER

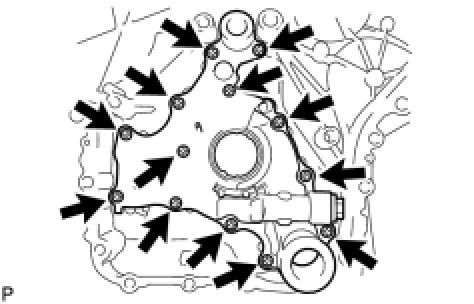

(a) Remove the 13 bolts, oil pump cover, drive rotor and driven rotor.





2. REMOVE OIL PUMP RELIEF VALVE

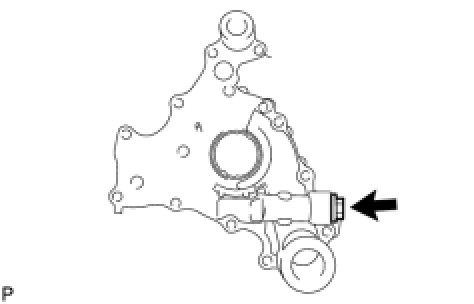

(a) Remove the relief valve plug.





(b) Remove the valve spring and oil pump relief valve.
